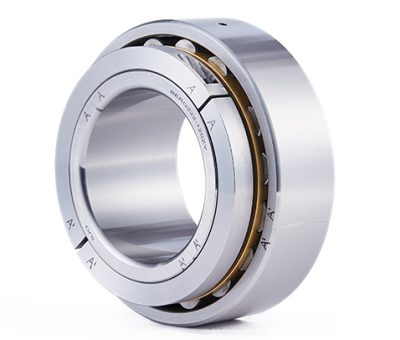

Split Cylindrical Roller Bearing

The Split Cylindrical Roller Bearing is suitable for the occasions where it is difficult to install and disassemble bearings in the industrial field, and can be applied to industries such as steel, mining, fans, cement and power generation.

Notice: The company’s products are still being uploaded. If you can’t find what you’re looking for, please feel free to submit a request form directly.

Product Parameters

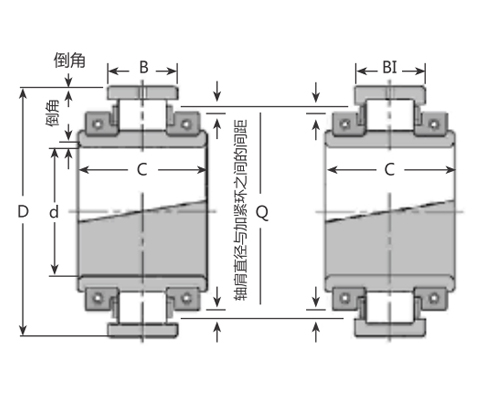

Roller Bearing		Bearing load rating kN				Roller main dimensions					Axial displacement value (2)		Roller weight kg	Bearing Housings		Boundary dimensions				Bearing seat mass kg	Plummer block housings													Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
Shaft diamete	Reference 1	Cr	Cor	Ca	Maximum speed	D	C	B	BI	Q	Routine	Max	Roller weight kg	Felt ring seal bearing box	Three-layer aluminum sealed bearing box	G	J	L	L1	Bearing seat mass kg	Reference	H	R minimum	R maximum	Ro	S	Bolts	Metric	Inch size	N	O	P	T	Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
35	01 B 35M	67	67	3.2	5400	84.14	50.1	23.8	23.8	75	3.5	5.5	1.2	01 C 35M	01 C 01	100	25	86	86	2	P01	60	172	192	–	–	2	M12	1/2\”	228	60	22	138	2.5	35
40	01 B 40M	67	67	3.2	5400	84.14	50.1	23.8	23.8	75	3.5	5.5	1.2	01 C 40M	01 C 01	100	25	86	86	2	P01	60	172	192	–	–	2	M12	1/2\”	228	60	22	138	2.5	40
45	01E B 45M	95	105	3.8	4630	98.42	55.7	25.4	25.4	90	4	5	1.5	01 C 45M	01 C 02	117.48	25	98	98	2.5	P02	70	203	227	–	–	2	M16	5/8\”	270	60	25	158	3.2	45
50	01E B 50M	95	105	3.8	4630	98.42	55.7	25.4	25.4	90	4	5	1.5	01 C 50M	01 C 02	117.48	25	98	98	2.5	P02	70	203	227	–	–	2	M16	5/8\”	270	60	25	158	3.2	50
50	02 B 50M	119	125	6.2	4350	107.95	67.5	35	35	98	5	10.5	2	02 C 50M	02 C 03	134.94	32	114	114	4	P03	80	226	242	–	–	2	M16	5/8\”	280	70	32	180	4.9	50
55	01E B 55M	135	157	7.2	3940	114.3	55.7	27	27	105	4.5	4.5	1.8	01 C 55M	01 C 03	134.94	32	104	104	3.2	P03	80	226	242	–	–	2	M16	5/8\”	280	70	32	180	4.9	55
60	01E B 60M	135	157	7.2	3940	114.3	55.7	27	27	105	4.5	4.5	1.8	01 C 60M	01 C 03	134.94	32	104	104	3.2	P03	80	226	242	–	–	2	M16	5/8\”	280	70	32	180	4.9	60
60	02 B 60M	168	193	8.8	3680	127	72.3	38.9	38.9	116	5.5	11	3	02 C 60M	02 C 04	157.16	38	126	126	7	P04	95	260	280	–	–	2	M20	3/4\”	330	76	38	208	6.9	60
65	01E B 65M	135	157	7.2	3940	114.3	55.7	27	27	105	4.5	4.5	1.8	01 C 65M	01 C 03	134.94	32	104	104	3.2	P03	80	226	242	–	–	2	M16	5/8\”	280	70	32	180	4.9	65
65	02 B 65M	168	193	8.8	3680	127	72.3	38.9	38.9	116	5.5	11	3	02 C 65M	02 C 04	157.16	38	126	126	7	P04	95	260	280	–	–	2	M20	3/4\”	330	76	38	208	6.9	65
70	01E B 70M	166	197	10.8	3310	133.35	61.2	31.8	31.8	124	5	7	2.5	01 C 70M	01 C 04	157.16	38	114	114	5.5	P04	95	260	280	–	–	2	M20	3/4\”	330	76	38	208	6.9	70
70	02 B 70M	229	268	10.6	3080	149.22	82.6	46.1	46.1	138	6	13.5	5	02 C 70M	02 C 05	177.8	50	140	140	9	P05	112	312	328	–	–	2	M24	7/8\”	380	90	44	252	13.3	70
75	100 B 75M	91	128	7	4125	114.3	48	27	27	102	3.5	7	1.2	100 C 75M	100 C 03	134.94	32	104	104	3.6	P03	80	226	242	–	–	2	M16	5/8\”	280	70	32	180	4.9	75
75	01E B 75M	166	197	10.8	3310	133.35	61.2	31.8	31.8	124	5	7	2.5	01 C 75M	01 C 04	157.16	38	114	114	5.5	P04	95	260	280	–	–	2	M20	3/4\”	330	76	38	208	6.9	75
75	02 B 75M	229	268	10.6	3080	149.22	82.6	46.1	46.1	138	6	13.5	5	02 C 75M	02 C 05	177.8	50	140	140	9	P05	112	312	328	–	–	2	M24	7/8\”	380	90	44	252	13.3	75
80	01E B 80M	234	299	13.6	2790	152.4	70.7	38.9	38.9	142	6	10	4	01 C 80M	01 C 05	177.8	50	136	136	7	P05	112	312	328	–	–	2	M24	7/8\”	380	90	44	252	13.3	80

Roller Bearing		Bearing load rating kN				Roller main dimensions					Axial displacement value (2)		Roller weight kg	Bearing Housings		Boundary dimensions				Bearing seat mass kg	Plummer block housings													Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
Shaft diamete	Reference 1	Cr	Cor	Ca	Maximum speed	D	C	B	BI	Q	Routine	Max	Roller weight kg	Felt ring seal bearing box	Three-layer aluminum sealed bearing box	G	J	L	L1	Bearing seat mass kg	Reference	H	R minimum	R maximum	Ro	S	Bolts	Metric	Inch size	N	O	P	T	Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
80	02 B 80M	280	345	17.8	2520	169.86	89.7	48.4	48.4	156	7	14	7	02 C 80M	02 C 06	203.2	50	154	154	10	P06	125	342	366	–	–	2	M24	7/8\”	420	102	52	272	14.7	80
85	100 B 85M	142	209	12.3	3600	133.35	60	31.8	31.8	120	5	6	2.1	100 B 85M	100 C 04	157.16	38	114	114	5.4	P04	95	260	280	–	–	2	M20	7/8\”	330	76	38	208	6.9	85
85	01E B 85M	234	299	13.6	2790	152.4	70.7	38.9	38.9	142	6	10	4	01 C 85M	01 C 05	177.8	50	136	136	7	P05	112	312	328	–	–	2	M24	7/8\”	380	90	44	252	13.3	85
85	02 B 85M	280	345	17.8	2520	169.86	89.7	48.4	48.4	156	7	14	7	02 C 85M	02 C 06	203.2	50	154	154	10	P06	125	342	366	–	–	2	M24	7/8\”	420	102	52	272	14.7	85
90	01E B 90M	234	299	13.6	2790	152.4	70.7	38.9	38.9	142	6	10	4	01 C 90M	01 C 05	177.8	50	136	136	7	P05	112	312	328	–	–	2	M24	7/8\”	380	90	44	252	13.3	90
90	02 B 90M	280	345	17.8	2520	169.86	89.7	48.4	48.4	156	7	14	7	02 C 90M	02 C 06	203.2	50	154	154	10	P06	125	342	366	–	–	2	M24	7/8\”	420	102	52	272	14.7	90
95	01E B 95M	320	421	19.6	2340	174.62	81	45.3	45.3	162	7	10.5	6	01 C 95M	01 C06	203.2	50	134	134	8	P06	125	342	366	–	–	2	M24	7/8\”	420	102	52	272	14.7	95
100	100 B 100M	191	288	18.3	3090	152.4	65	38.9	38.9	140	6	9	2.8	100 C 100M	100 C 05	177.8	50	136	136	7.4	P05	112	312	328	–	–	2	M24	7/8\”	380	90	44	252	13.3	100
100	01E B 100M	320	421	19.6	2340	174.62	81	45.3	45.3	162	7	10.5	6	01 C 100M	01 C06	203.2	50	134	134	8	P06	125	342	366	–	–	2	M24	7/8\”	420	102	52	272	14.7	100
100	02 B 100M	362	456	25	2130	193.68	92.1	51.6	51.6	178	8	13.5	9	02 C 100M	02 C 07	231.78	64	146	146	12	P07	143	374	410	–	–	2	M24	7/8\”	466	120	60	314	20.6	100
100	03 B 100M	610	684	31.2	1820	254	136	84.2	84.2	219	11	29	30	03 C 100M	03 C 54	308	95	200	206	41	P54	191	426	450	–	82	4	M24	7/8\”	514	152	38	405	61	100
105	01E B 105M	320	421	19.6	2340	174.62	81	45.3	45.3	162	7	10.5	6	01 C 105M	01 C 06	203.2	50	134	134	8	P06	125	342	366	–	–	2	M24	7/8\”	420	102	52	272	14.7	105
105	02 B 105M	362	456	25	2130	193.68	92.1	51.6	51.6	178	8	13.5	9	02 C 105M	02 C 07	231.78	64	146	146	12	P07	143	374	410	–	–	2	M24	7/8\”	466	120	60	314	20.6	105
110	100 B 110M	279	426	22.2	2750	174.62	80	45.3	45.3	160	7	9.5	4.6	100 C 110M	100 C 06	203.2	50	134	134	7.9	P06	125	342	366	–	–	2	M24	7/8\”	420	102	52	272	14.7	110
110	01 B 110M	306	407	18.6	1970	203.2	84.9	46.9	46.9	182	7	12.5	10.2	01 C 110M	01 C 07	231.78	64	142	142	11.9	P07	143	374	410	–	–	2	M24	7/8\”	466	120	60	314	20.6	110
110	02 B 110M	454	583	31.2	1820	228.6	100	57.2	57.2	202	9	13.5	16	02 C 110M	02 C 08	266.7	76	162	162	19	P08	162	438	462	–	120	4	M24	7/8\”	508	178	38	372	43.3	110

Roller Bearing		Bearing load rating kN				Roller main dimensions					Axial displacement value (2)		Roller weight kg	Bearing Housings		Boundary dimensions				Bearing seat mass kg	Plummer block housings													Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
Shaft diamete	Reference 1	Cr	Cor	Ca	Maximum speed	D	C	B	BI	Q	Routine	Max	Roller weight kg	Felt ring seal bearing box	Three-layer aluminum sealed bearing box	G	J	L	L1	Bearing seat mass kg	Reference	H	R minimum	R maximum	Ro	S	Bolts	Metric	Inch size	N	O	P	T	Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
110	03 B 110M	614	698	39.2	1640	266.7	147	87.3	87.3	232	11	30	36	03 C 110M	03 C 55	323.85	102	210	222	46	P55	197	446	470	–	88	4	M24	7/8\”	534	166	38	425	69	110
115	01 B 115M	306	407	18.6	1970	203.2	84.9	46.9	46.9	182	7	12.5	10.2	01 C 115M	01 C 07	231.78	64	142	142	11.9	P07	143	374	410	–	–	2	M24	7/8\”	466	120	60	314	20.6	115
115	02 B 115M	454	583	31.2	1820	228.6	100	57.2	57.2	202	9	13.5	16	02 C 115M	02 C 08	266.7	76	162	162	19	P08	162	438	462	–	120	4	M24	7/8\”	508	178	38	372	43.3	115
120	100 B 120M	280	433	23.8	2480	203.2	85	46.9	46.9	180	7	11	7.4	100 C 120M	100 C 07	231.78	64	142	142	11	P07	143	374	410	–	–	2	M24	7/8\”	466	120	60	314	20.6	120
120	01 B 120M	355	484	22.2	1740	222.25	89.7	54	54	200	7	15	12.8	01 C 120M	01 C 08	266.7	76	156	156	19.5	P08	162	438	462	–	120	4	M24	7/8\”	508	178	38	372	43.3	120
120	02 B 120M	547	713	38.2	1600	254	114.3	63.5	63.5	224	10	15	20	02 C 120M	02 C 1O	295.28	82	184	184	26	P10	181	484	508	–	120	4	M24	7/8\”	558	178	41	415	54	120
120	03 B 120M	614	698	39.2	1640	266.7	147	87.3	87.3	232	11	30	36	03 C 120M	03 C 55	323.85	102	210	222	46	P55	197	446	470	–	88	4	M24	1\”	534	166	38	425	69	120
125	01 B 125M	355	484	22.2	1740	222.25	89.7	54	54	200	7	15	12.8	01 C 125M	01 C 08	266.7	76	156	156	19.5	P08	162	438	462	–	120	4	M24	7/8\”	508	178	38	372	43.3	125
125	02 B 125M	547	713	38.2	1600	254	114.3	63.5	63.5	224	10	15	20	02 C 125M	02 C 1O	295.28	82	184	184	26	P10	181	484	508	–	120	4	M24	7/8\”	558	178	41	415	54	125
130	100 B 130M	280	433	23.8	2480	203.2	85	46.9	46.9	180	7	11	7.4	100 C 130M	100 C 07	231.78	64	142	142	11	P07	143	374	410	–	–	2	M24	7/8\”	466	120	60	314	20.6	130
130	01 B 130M	355	484	22.2	1740	222.25	89.7	54	54	200	7	15	12.8	01C 130M	01 C 08	266.7	76	156	156	19.5	P08	162	438	462	–	120	4	M24	7/8\”	508	178	38	372	43.3	130
130	02 B 130M	547	713	38.2	1600	254	114.3	63.5	63.5	224	10	15	20	02 C 130M	02 C 10	295.28	82	184	184	26	P10	181	484	508	–	120	4	M24	7/8\”	558	178	41	415	54	130
130	03 B 130M	706	852	49	1500	279.4	140	73.1	84.2	245	11	18	36	03 C 130M	03 C 56	323.85	102	214	222	48	P56	203	458	482	–	96	4	M24	1\”	546	166	48	435	74	130
135	01 B 135M	394	542	25.8	1570	241.3	98.4	55.6	55.6	216	8	16	15	01 C 135M	01 C 09	279.4	76	168	168	20.8	P09	181	470	494	–	120	4	M24	7/8\”	558	178	41	405	52	135
135	02 B 135M	608	808	45.4	1450	273.05	117.5	66.7	66.7	240	10	15	24	02 C 135M	02 C 30	323.85	90	188	188	33	P30	203	534	558	–	120	4	M24	1\”	610	178	51	460	76	135
140	100 B 140M	331	520	30.5	2250	222.25	90	54	54	195	7	13	9.3	100 C MOM	100 C 08	266.7	76	156	156	18.4	P08	162	438	462	–	120	4	M24	7/8\”	508	178	38	372	43.3	140

Roller Bearing		Bearing load rating kN				Roller main dimensions					Axial displacement value (2)		Roller weight kg	Bearing Housings		Boundary dimensions				Bearing seat mass kg	Plummer block housings													Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
Shaft diamete	Reference 1	Cr	Cor	Ca	Maximum speed	D	C	B	BI	Q	Routine	Max	Roller weight kg	Felt ring seal bearing box	Three-layer aluminum sealed bearing box	G	J	L	L1	Bearing seat mass kg	Reference	H	R minimum	R maximum	Ro	S	Bolts	Metric	Inch size	N	O	P	T	Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
140	01 B 140M	394	542	25.8	1570	241.3	98.4	55.6	55.6	216	8	16	15	01 C 140M	01 C 09	279.4	76	168	168	20.8	P09	181	470	494	–	120	4	M24	7/8\”	558	178	41	405	52	140
140	02 B 140M	608	808	45.4	1450	273.05	117.5	66.7	66.7	240	10	15	24	02 C 140M	02 C 30	323.85	90	188	188	33	P30	203	534	558	–	120	4	M24	1\”	610	178	51	460	76	140
140	03 B 140M	886	1069	58.8	1340	304.8	147	79.4	90.5	270	12	18	44	03 C 140M	03 C 57	355.6	10	216	230	52	P57	229	494	534	–	102	4	M30	1 1/4\”	622	178	54	485	97	140
145	02 B 145M	608	808	45.4	1450	273.05	117.5	66.7	66.7	240	10	15	24	02 C 145M	02 C 30	323.85	90	188	188	33	P30	203	534	558	–	120	4	M24	1\”	610	178	51	460	76	145
150	100 B 150M	397	606	31.4	2060	241.3	90	55.6	55.6	215	8	15.5	10.4	100 C 150M	100 C 09	279.4	76	168	168	19.4	P09	181	470	494	–	120	4	M24	7/8\”	558	178	41	405	52	150
150	01 B 150M	428	616	29.4	1450	254	98.4	55.6	55.6	230	8	16	16.6	01 C 150M	01 C 10	295.28	82	174	174	24.4	P10	181	484	508	–	120	4	M24	7/8\”	558	178	41	415	54	150
150	02 B 150M	724	1005	52.4	1320	292.1	123.8	68.3	68.3	258	10	15	29	02 C 150M	02 C 31	336.55	95	204	204	39	P31	210	546	570	–	128	4	M24	1\”	636	204	50	470	83	150
150	03 B 150M	994	1213	69.4	1220	330.2	160	81	96.9	292	13	16	57	03 C 150M	03 C 58	393.7	11	232	254	70	P58	254	538	578	–	120	4	M30	1 1/4\”	666	204	57	535	142	150
155	01 B 155M	428	616	29.4	1450	254	98.4	55.6	55.6	230	8	16	16.6	01 C 155M	01 C 10	295.28	82	174	174	24.4	P10	181	484	508	–	120	4	M24	7/8\”	558	178	41	415	54	155
155	02 B 155M	724	1005	52.4	1320	292.1	123.8	68.3	68.3	258	10	15	29	02 C 155M	02 C 31	336.55	95	204	204	39	P31	210	546	570	–	128	4	M24	1\”	636	204	50	470	83	155
160	01 B 600-160M	428	616	29.4	1450	254	98.4	55.6	55.6	230	8	16	16.6	01 C 600-160M	01 C 10 OTL	295.28	82	174	174	24.4	P10*	181	484	508	–	120	4	M24	7/8\”	558	178	41	415	54	160
160	01 B 160M	487	715	33	1320	273.05	109	60.3	60.3	248	8	18	21	01 C 160M	01 C 11	311.15	76	172	192	30	P11	213	356	380	–	114	4	M24	1\”	508	178	32	430	53	160
160	02 B 600-160M	724	1005	52.4	1320	292.1	123.8	68.3	68.3	258	10	15	29	02 C 600-160M	02 C 31 OTL	336.55	95	204	204	39	P31*	210	546	570	–	128	4	M24	1\”	636	204	50	470	83	160
160	02 B 160M	762	1033	61.4	1200	317.5	140	83.3	83.3	280	11	25	39	02 C 160M	02 C 32	368.3	95	206	232	56	P32	267	428	468	–	172	4	M30	1 1/4\”	596	242	44	535	106	160
160	03 B 160M	1156	1564	79.2	1110	355.6	171	103.2	103.2	308	14	31	72	03 C 160M	03 C 59	422.3	120	244	268	81	P59	267	608	648	–	140	4	M30	1 1/4\”	736	228	60	570	162	160
170	01 B 608-170M	487	715	33	1320	273.05	109	60.3	60.3	248	8	18	21	01 C 608-170M	01 C 11 OTL	311.15	76	172	192	30	Pll	213	356	380	–	114	4	M24	1\”	508	178	32	430	53	170

Roller Bearing		Bearing load rating kN				Roller main dimensions					Axial displacement value (2)		Roller weight kg	Bearing Housings		Boundary dimensions				Bearing seat mass kg	Plummer block housings													Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
Shaft diamete	Reference 1	Cr	Cor	Ca	Maximum speed	D	C	B	BI	Q	Routine	Max	Roller weight kg	Felt ring seal bearing box	Three-layer aluminum sealed bearing box	G	J	L	L1	Bearing seat mass kg	Reference	H	R minimum	R maximum	Ro	S	Bolts	Metric	Inch size	N	O	P	T	Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
170	01 B 170M	524	801	36.4	1220	285.75	109	55.5	55.5	260	8	13.5	23	01 C 170M	01 C 12	323.85	70	172	200	31	P12	235	376	400	–	128	4	M24	1\”	534	190	35	470	63	170
170	02 B 170M	762	1033	61.4	1200	317.5	140	83.3	83.3	280	11	25	39	02 C 170M	02 C 32 OTL	368.3	95	206	232	56	P32	267	428	468	–	172	4	M30	1 1/4\”	596	242	44	535	106	170
170	03 B 170M	1156	1564	79.2	1110	355.6	171	103.2	103.2	308	14	31	72	03 C 170M	03 C 59	422.3	120	244	268	81	P59	267	608	648	–	140	4	M30	1 1/4\”	736	228	60	570	162	170
175	01 B 175M	524	801	36.4	1220	285.75	109	55.5	55.5	260	8	13.5	23	01 C 175M	01 C 12	323.85	70	172	200	31	P12	235	376	400	–	128	4	M24	1\”	534	190	35	470	63	175
175	02 B 175M	840	1191	71.2	1120	330.2	140	83.3	83.3	294	11	25	45	02 C 175M	02 C 33	381	95	222	242	66	P33	273	438	478	–	166	4	M30	1 1/4\”	636	242	44	545	116	175
180	01 B 180M	524	801	36.4	1220	285.75	109	55.5	55.5	260	8	13.5	23	01 C 180M	01 C 12	323.85	70	172	200	31	P12	235	376	400	–	128	4	M24	1\”	534	190	35	470	63	180
180	02 B 180M	840	1191	71.2	1120	330.2	140	83.3	83.3	294	11	25	45	02 C 180M	02 C 33	381	95	222	242	66	P33	273	438	478	–	166	4	M30	1 1/4\”	636	242	44	545	116	180
180	03 B 180M	1242	1704	89	1030	374.65	178	92.1	108.8	326	15	16	79	03 C 180M	03 C 60	431.8	132	254	284	87	P60	279	616	656	–	152	4	M30	1 1/4\”	762	254	64	580	172	180
190	01 B 190M	555	893	41	1070	311.15	109	60.3	60.3	285	8	18	25	01 C 190M	01 C 13	358.78	86	172	200	41	P13	248	410	434	–	140	4	M24	1\”	572	204	38	495	83	190
190	02 B 190M	998	1457	80	960	368.3	156	90.5	90.5	328	13	26	59	02 C 190M	02 C 34	425.5	105	235	258	84	P34	305	488	528	–	190	4	M30	1 1/4\”	686	266	50	610	145	190
190	03 B 190M	1451	2022	99.6	880	419.1	191	97.7	118.3	366	16	16	105	03 C 190M	03 C 61	489	146	270	300	109	P61	311	616	656	–	172	4	M36	1 1/2\”	838	266	67	655	223	190
200	01 B 200M	555	893	41	1070	311.15	109	60.3	60.3	285	8	8	25	01 C 200M	01 C 13	358.78	86	172	200	41	P13	248	410	434	–	140	4	M24	1\”	572	204	38	495	83	200
200	02 B 200M	998	1457	80	960	368.3	156	90.5	90.5	328	13	13	59	02 C 200M	02 C 34	425.5	105	235	258	84	P34	305	488	528	–	190	4	M30	1 1/4\”	686	266	50	610	145	200
200	03 B 200M	1451	2022	99.6	880	419.1	191	97.7	118.3	366	16	16	105	03 C 200M	03 C 61	489	146	270	300	109	P61	311	616	656	–	172	4	M36	1 1/2\”	838	266	67	655	223	200
220	01 B 220M	600	980	49	930	342.9	115	63.5	63.5	315	8	8	32	01 C 220M	01 C 14	387.35	82	178	216	46	P14	270	440	480	–	140	4	M30	1 1/4\”	636	216	40	540	90	220
220	02 B 220M	1082	1662	89.8	850	393.7	163	90.5	90.5	354	13	13	68	02 C 220M	02 C 35	457.2	110	242	274	98	P35	324	530	570	–	190	4	M36	1 1/2\”	750	280	50	650	179	220

Roller Bearing		Bearing load rating kN				Roller main dimensions					Axial displacement value (2)		Roller weight kg	Bearing Housings		Boundary dimensions				Bearing seat mass kg	Plummer block housings													Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
Shaft diamete	Reference 1	Cr	Cor	Ca	Maximum speed	D	C	B	BI	Q	Routine	Max	Roller weight kg	Felt ring seal bearing box	Three-layer aluminum sealed bearing box	G	J	L	L1	Bearing seat mass kg	Reference	H	R minimum	R maximum	Ro	S	Bolts	Metric	Inch size	N	O	P	T	Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
220	03 B 220M	1586	2163	109.4	760	469.9	212	109.6	131.8	410	18	18	145	03 C 220M	03 C 62	546.1	165	298	334	155	P62	349	716	756	–	178	4	M42	1 3/4\”	952	280	76	730	309	220
230	01 B 230M	600	980	49	930	342.9	115	63.5	63.5	315	8	8	32	01 C 230M	01 C 14	387.35	82	178	216	46	P14	270	440	480	–	140	4	M30	1 1/4\”	636	216	40	540	90	230
230	02 B 230M	1082	1662	89.8	850	393.7	163	90.5	90.5	354	13	13	68	02 C 230M	02 C 35	457.2	110	242	274	98	P35	324	530	570	–	190	4	M36	1 1/2\”	750	280	50	650	179	230
240	01 B 240M	675	1182	57.8	820	374.65	122	66.7	66.7	344	9	9	40	01 C 240M	01 C 15	419.1	90	188	222	58	P15	292	482	522	–	140	4	M30	1 1/4\”	686	228	44	585	114	240
240	02 B 240M	1149	1756	98.8	750	431.8	170	96.8	96.8	388	13	13	77	02 C 240M	02 C 36	495.3	118	248	280	105	P36	356	576	616	–	204	4	M36	1 1/2\”	812	292	54	710	212	240
240	03 B 240M	1778	2551	131	700	482.6	211	105.6	124.6	430	18	18	150	03 C 240M	03 C 63	558.8	165	298	334	161	P63	394	650	690	–	304	4	M42	1 3/4\”	914	406	76	790	392	240
250	01 B 250M	675	1182	57.8	820	374.65	122	66.7	66.7	344	9	9	40	01 C 250M	01 C 15	419.1	90	188	222	58	P15	292	482	522	–	140	4	M30	1 1/4\”	686	228	44	585	114	250
250	02 B 250M	1149	1756	98.8	750	431.8	170	96.8	96.8	388	13	13	77	02 C 250M	02 C 36	495.3	118	248	280	105	P36	356	576	616	–	204	4	M36	1 1/2\”	812	292	54	710	212	250
250	03 B 250M	1778	2551	131	700	482.6	211	105.6	124.6	430	18	18	150	03 C 250M	03 C 63	558.8	165	298	334	161	P63	394	650	690	–	304	4	M42	1 3/4\”	914	406	76	790	392	250
260	01 B 1000-260M	675	1182	57.8	820	374.65	122	66.7	66.7	344	9	22	40	01 C 1000-260M	01 C 15 OTL	419.1	90	188	222	58	P15	292	482	522	–	140	4	M30	1 1/4\”	686	228	44	585	114	260
260	01 B 260M	769	1330	66.8	730	406.4	128	69	69	375	10	20	50	01 C 260M	01 C 16	454	95	204	232	70	P16	311	514	554	–	140	4	M30	1 1/4\”	724	228	48	620	142	260
260	02 B 260M	1149	1756	98.8	750	431.8	170	96.8	96.8	388	13	29	77	02 C 260M	02 C 36 OTL	495.3	118	248	280	105	P36	356	576	616	–	204	4	M36	1 1/2\”	812	292	54	710	212	260
260	03 B 260M	1778	2551	131	700	482.6	211	105.6	124.6	430	18	33	150	03 C 260M	03 C 63	558.8	165	298	334	161	P63	394	650	690	–	304	4	M42	1 3/4\”	914	406	76	790	392	260
270	01 B 270M	769	1330	66.8	730	406.4	128	69	69	375	10	20	50	01 C 270M	01C 16	454	95	204	232	70	P16	311	514	554	–	140	4	M30	1 1/4\”	724	228	48	620	142	270
275	01 B 275M	769	1330	66.8	730	406.4	128	69	69	375	10	20	50	01 C 275M	01 C 16	454	95	204	232	70	P16	311	514	554	–	140	4	M30	1 1/4\”	724	228	48	620	142	275
280	01 B 280M	769	1330	66.8	730	406.4	128	69	69	375	10	20	50	01 C 280M	01 C16	454	95	204	232	70	P16	311	514	554	–	140	4	M30	1 1/4\”	724	228	48	620	142	280

Roller Bearing		Bearing load rating kN				Roller main dimensions					Axial displacement value (2)		Roller weight kg	Bearing Housings		Boundary dimensions				Bearing seat mass kg	Plummer block housings													Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
Shaft diamete	Reference 1	Cr	Cor	Ca	Maximum speed	D	C	B	BI	Q	Routine	Max	Roller weight kg	Felt ring seal bearing box	Three-layer aluminum sealed bearing box	G	J	L	L1	Bearing seat mass kg	Reference	H	R minimum	R maximum	Ro	S	Bolts	Metric	Inch size	N	O	P	T	Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
280	02 B 280M	1367	2145	114	670	463.55	186	101.6	101.6	420	14	29	86	02 C 280M	02 C 37	527.1	130	264	300	131	P37	378	514	554	101	254	8	M30	1 1/4\”	914	330	60	760	292	280
280	03X B 280M	1956	2960	153	620	520.7	231	131.8	131.8	462	18	40	197	03X C 280M	03X C 64	596.9	165	324	352	200	P64	425	590	630	101	318	8	M36	1 1/2\”	1028	406	76	850	495	280
280	03E B 280M	2105	3233	153	620	495.3	244	139.7	139.7	452	20	34	182	03E C 280M	03E C 83	571.5	165	356	356	204	P83	368	482	522	120	178	8	M36	1 1/2\”	940	280	70	785	205	280
290	01 B 290M	806	1452	78.2	650	438.15	143	74.6	74.6	404	10	25	60	01 C 290M	01 C 17	489	98	216	248	86	P17	343	564	604	–	178	4	M30	1 1/4\”	762	254	50	685	169	290
290	03 B 290M	2156	3312	174	560	558.8	244	139.7	139.7	496	19	43	238	03 C 290M	03 C 65	641.4	165	346	370	239	P65	457	654	694	101	330	8	M36	1 1/2\”	1092	420	76	915	586	290
300	01 B 300M	806	1452	78.2	650	438.15	143	74.6	74.6	404	10	25	60	01 C 300M	01 C 17	489	98	216	248	86	P17	343	564	604	–	178	4	M30	1 1/2\”	762	254	50	685	169	300
300	02 B 300M	1467	2409	129	610	495.3	193	103.2	103.2	448	14	30	123	02 C 300M	02 C 38	552.5	128	268	306	129	P38	394	546	586	101	254	8	M30	1 1/2\”	958	330	60	790	330	300
300	03 B 300M	2156	3312	174	560	558.8	244	139.7	139.7	496	19	43	238	03 C 300M	03 C 65	641.4	165	346	370	239	P65	457	654	694	101	330	8	M36	1 1/2\”	1092	420	76	915	586	300
320	01 B 320M	894	1638	89	590	463.55	136	74.6	74.6	432	10	23	72	01 C 320M	01 C 18	520.7	95	260	260	106	P18	368	602	642	–	178	4	M36	1 1/2\”	812	254	54	735	196	320
320	02 B 320M	1570	2622	144	550	527.05	192	106.4	106.4	478	15	30	150	02 C 320M	02 C 39	587.4	128	298	298	172	P39	419	590	630	101	210	8	M30	1 1/2\”	1016	292	64	840	383	320
320	03 B 320M	2529	3795	199	500	622.3	272	160.4	160.4	550	22	48	327	03 C 320M	03 C 66	717.6	170	368	368	273	P66	518	742	782	108	266	8	M36	1 1/2\”	1194	356	80	1035	655	320
330	01 B 330M	894	1638	89	590	463.55	136	74.6	74.6	432	10	23	72	01 C 330M	01 C 18	520.7	95	260	260	106	P18	368	602	642	–	178	4	M36	1 1/2\”	812	254	54	735	196	330
330	02 B 330M	1570	2622	144	550	527.05	192	106.4	106.4	478	15	30	150	02 C 330M	02 C 39	587.4	128	298	298	172	P39	419	590	630	101	210	8	M30	1 1/4\”	1016	292	64	840	383	330
340	01 B 1300-340M	894	1638	89	590	463.55	136	74.6	74.6	432	10	23	72	01 C 1300-340M	01 C 18	520.7	95	260	260	106	P18	368	602	642	–	178	4	M36	1 1/2\”	812	254	54	735	196	340
340	01 B 340M	935	1774	99.6	540	488.95	136	74.6	74.6	456	10	23	78	01C 340M	01 C 19	546.1	98	260	260	117	P19	387	634	674	–	166	4	M36	1 1/2\”	850	254	57	775	213	340
340	02 B 340M	1744	2940	159	500	565.15	200	115.9	115.9	514	16	35	182	02 C 340M	02 C 40	628.7	146	305	305	186	P40	451	640	680	102	280	8	M36	1 1/2\”	1092	368	67	900	429	340

Roller Bearing		Bearing load rating kN				Roller main dimensions					Axial displacement value (2)		Roller weight kg	Bearing Housings		Boundary dimensions				Bearing seat mass kg	Plummer block housings													Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
Shaft diamete	Reference 1	Cr	Cor	Ca	Maximum speed	D	C	B	BI	Q	Routine	Max	Roller weight kg	Felt ring seal bearing box	Three-layer aluminum sealed bearing box	G	J	L	L1	Bearing seat mass kg	Reference	H	R minimum	R maximum	Ro	S	Bolts	Metric	Inch size	N	O	P	T	Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
340	03E B 340M	2750	4392	214	460	615.95	279	158	158	556	22	44	318	03E C 340M	03E C 86	704.9	196	432	432	385	P86	470	634	686	134	190	8	M42	1 3/4\”	1220	318	82	1000	464	340
350	01 B 350M	935	1774	99.6	540	488.95	136	74.6	74.6	456	10	23	78	01 C 350M	01 C 19	546.1	98	260	260	117	P19	387	634	674	–	166	4	M36	1 1/2\”	850	254	57	775	213	350
350	02 B 350M	1744	2940	159	500	565.15	200	115.9	115.9	514	16	35	182	02 C 350M	02 C 40	628.7	146	305	305	186	P40	451	640	680	102	280	8	M36	1 1/2\”	1092	368	67	900	429	350
360	01 B 1400-360M	935	1774	99.6	540	488.95	136	74.6	74.6	456	10	23	78	01 C 1400-360M	01 C 19	546.1	98	260	260	117	P19	387	634	674	–	166	4	M36	1 1/2\”	850	254	57	775	213	360
360	01 B 360M	1005	1925	110	500	520.7	140	76.2	76.2	486	10	23	86	01 C 360M	01 C 20	571.5	98	260	260	126	P20	397	656	696	–	166	4	M36	1 1/2\”	902	254	60	795	288	360
360	02 B 360M	1744	2940	159	500	565.15	200	115.9	115.9	514	16	35	182	02 C 360M	02 C 40	628.7	146	305	305	186	P40	451	640	680	102	280	8	M36	1 1/2\”	1092	368	67	900	429	360
360	03E B 360M	2750	4392	214	460	615.95	279	158	158	556	22	44	318	03E C 360M	03E C 86	704.9	196	432	432	385	P86	470	634	686	134	190	8	M42	1 1/2\”	1220	318	82	1000	464	360
360	03X B 360M	2785	4377	226	460	647.7	279	160.4	160.4	575	22	48	372	03X C 360M	03X C 67	739.8	196	380	380	353	P67	533	758	810	114	266	8	M42	1 3/4\”	1244	368	90	1065	820	360
380	01 B 380M	1005	1925	110	500	520.7	140	76.2	76.2	486	10	23	86	01 C 380M	01 C 20	571.5	98	260	280	126	P20	397	656	696	–	166	4	M36	1 1/2\”	902	254	60	795	288	380
380	02 B 380M	1862	3254	174	460	584.2	200	111.1	111.1	536	16	30	186	02 C 380M	02 C 41	647.7	146	305	342	209	P41	464	662	702	102	280	8	M36	1 1/2\”	1092	368	67	925	445	380
380	03 B 380M	3019	4800	251	420	685.8	292	166.7	166.7	610	23	50	431	03 C 380M	03 C 68	774.7	202	400	438	399	P68	559	780	832	115	292	8	M42	1 3/4\”	1270	394	92	1120	859	380
390	01 B 390M	1048	2071	116	460	546.1	140	76.2	76.2	512	10	23	95	01 C 390M	01 C 21	603.3	102	280	286	141	P21	432	704	744	–	166	4	M36	1 1/2\”	940	254	67	865	309	390
400	01 B 400M	1048	2071	116	460	546.1	140	76.2	76.2	512	10	23	95	01 C 400M	01 C 21	603.3	102	280	286	141	P21	432	704	744	–	166	4	M36	1 1/2\”	940	254	67	865	309	400
400	02 B 400M	1948	3438	188	430	615.95	200	115.9	115.9	566	16	33	209	02 C 400M	02 C 42	685.8	146	324	350	254	P42	495	710	750	102	280	8	M36	1 1/2\”	1168	368	70	990	537	400
400	03 B 400M	3019	4800	251	420	685.8	292	166.7	166.7	610	23	50	431	03 C 400M	03 C 68	774.7	202	400	438	399	P68	559	780	832	115	292	8	M42	1 3/4\”	1270	394	92	1120	859	400
420	01 B 420M	1089	2218	121	430	571.5	140	76.2	76.2	538	10	22	104	01 C 420M	01 C 22	628.7	102	292	298	150	P22	445	736	776	–	166	4	M36	1 1/2\”	966	254	67	890	316	420

Roller Bearing		Bearing load rating kN				Roller main dimensions					Axial displacement value (2)		Roller weight kg	Bearing Housings		Boundary dimensions				Bearing seat mass kg	Plummer block housings													Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
Shaft diamete	Reference 1	Cr	Cor	Ca	Maximum speed	D	C	B	BI	Q	Routine	Max	Roller weight kg	Felt ring seal bearing box	Three-layer aluminum sealed bearing box	G	J	L	L1	Bearing seat mass kg	Reference	H	R minimum	R maximum	Ro	S	Bolts	Metric	Inch size	N	O	P	T	Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
420	02 B 420M	2069	3702	202	400	647.7	200	119.1	119.1	596	17	33	241	02 C 420 M	02 C 43	717.6	146	324	356	264	P43	514	748	788	102	280	8	M36	1 1/2\”	1194	368	70	1030	564	420
420	03E B 420M	3474	6006	276	360	700	284	160	160	640	23	42	395	03E C 420M	03E C 89	788	200	440	442	408	P89	508	664	716	150	210	8	M48	2\”	1270	360	90	1075	482	420
440	01 B 440M	1129	2366	127	410	596.9	140	76.2	76.2	562	10	22	114	01 C 440M	01 C 23	650.9	108	304	310	151	P23	464	768	808	–	190	4	M42	1 3/4\”	1042	280	70	925	370	440
440	02 B 440M	2195	4057	216	380	666.75	200	115.9	115.9	618	17	30	250	02 C 440M	02 C 44	733.4	146	324	356	265	P44	533	768	808	104	280	8	M36	1 1/2\”	1244	368	73	1070	564	440
440	03E B 440M	3474	6006	276	360	700	284	160	160	640	23	42	395	03E C 440M	03E C 89	788	200	440	442	408	P89	508	664	716	150	210	8	M48	2\”	1270	360	90	1075	482	440
460	01 B 460M	1129	2366	127	410	596.9	140	76.2	76.2	562	10	22	114	01 C 460M	01 C 23	650.9	108	304	310	151	P23	464	768	808	–	190	4	M42	1 3/4\”	1042	280	70	925	370	460
460	02 B 460M	2195	4057	216	380	666.75	200	115.9	115.9	618	17	30	250	02 C 460M	02 C 44	733.4	146	324	356	265	P44	533	768	808	104	280	8	M36	1 1/2\”	1244	368	73	1070	564	460
460	03E B 460M	3650	6156	302	340	740	294	170	170	680	24	46	431	03E C 460M	03E C 90	840	200	450	450	454	P90	550	754	806	150	220	8	M48	2\”	1370	380	95	1165	705	460
460	03X B 460M	3771	6186	309	340	800.1	300	187.4	187.4	715	26	56	630	03X C 460M	03X C 71	914.4	235	476	482	740	P71	660	908	960	178	362	8	M48	2\”	1574	470	10E	???	1330	460
480	01 B 480M	1169	2433	133	380	628.65	144	81	81	594	11	24	128	01 C 480M	01 C 24	682.6	108	304	324	162	P24	483	796	836	–	188	4	M42	1 3/4\”	1092	304	73	965	402	480
480	02 B 480M	2313	4419	230	360	698.5	223	119.1	119.1	648	17	33	263	02 C 480M	02 C 45	762	146	338	374	272	P45	552	792	832	115	280	8	M36	1 1/2\”	1270	368	76	1110	690	480
480	03X B 480M	3771	6186	309	340	800.1	300	187.4	187.4	715	26	56	630	03X C 480M	03X C 71	914.4	235	476	482	740	P71	660	908	960	178	362	8	M48	2\”	1574	470	108	1320	1330	480
500	01 B 500M	1213	2593	138	360	654.05	168	80.2	80.2	618	11	23	136	01 C 500M	01 C25	717.6	114	304	330	192	P25	489	824	864	–	216	4	M42	1 3/4\”	1092	304	76	980	402	500
500	02 B 500M	2430	4776	244	340	717.55	226	115.9	115.9	670	17	30	272	02 C 500M	02 C 46	787.4	146	350	374	323	P46	572	824	864	115	280	8	M36	1 1/2\”	1296	368	80	1145	677	500
500	03 B 500M	4087	7042	347	310	850.9	300	187.4	187.4	765	26	56	730	03 C 500M	03 C 94	958.9	204	495	508	770	P94	622	914	966	165	242	8	M56	2 1/4\”	1600	406	102	1340	1000	500
530	01 B 530M	1253	2755	141	340	692.15	168	81	81	650	11	23	164	01 C 530M	01 C 26	755.7	114	330	336	226	P26	533	884	924	–	206	4	M42	1 3/4\”	1194	304	80	1065	495	530

Roller Bearing		Bearing load rating kN				Roller main dimensions					Axial displacement value (2)		Roller weight kg	Bearing Housings		Boundary dimensions				Bearing seat mass kg	Plummer block housings													Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d

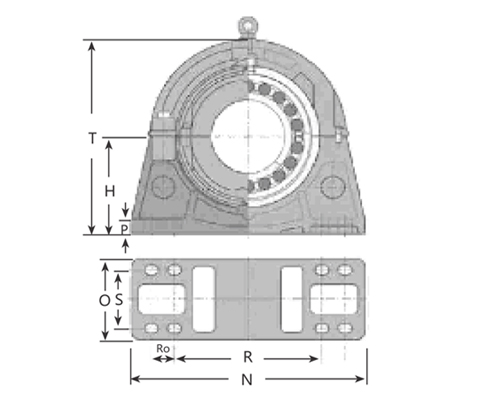

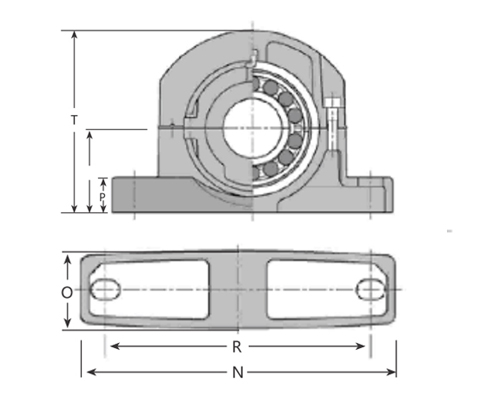

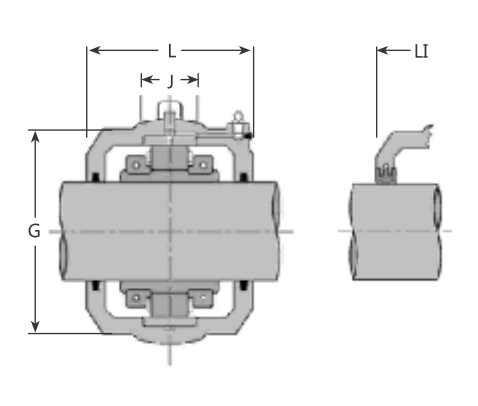

Shaft diamete	Reference 1	Cr	Cor	Ca	Maximum speed	D	C	B	BI	Q	Routine	Max	Roller weight kg	Felt ring seal bearing box	Three-layer aluminum sealed bearing box	G	J	L	L1	Bearing seat mass kg	Reference	H	R minimum	R maximum	Ro	S	Bolts	Metric	Inch size	N	O	P	T	Vertical bearing seat mass kg	Vertical bearing seat bearing diameter d
530	02 B 530M	2658	5137	258	330	762	229	119.1	119.1	710	18	27	309	02 C 530M	02 C 47	831.9	150	350	374	351	P47	591	870	910	114	280	8	M36	1 1/2\”	1398	368	83	1180	905	530
530	03 B 530M	4087	7042	347	310	850.9	300	187.4	187.4	765	26	56	730	03 C 530M	03 C 94	958.9	204	495	508	770	P94	622	914	966	165	242	8	M56	2 1/4\”	1600	406	102	1340	1000	530
560	01 B 560M	1294	2916	142	330	717.55	168	81	81	675	11	23	178	01 C 560M	01 C27	781.1	114	336	342	252	P27	552	916	956	–	206	4	M42	1 3/4\”	1220	304	83	1110	570	560
560	02 B 560M	2790	5556	272	310	793.75	233	122.2	122.2	738	18	30	336	02 C 560M	02 C 48	866.8	152	356	380	379	P48	616	904	956	114	280	8	M42	1 3/4\”	1422	382	86	1230	965	560
560	03E B 560M	4669	8511	383	280	863.6	310	196.9	196.9	800	28	56	635	03E C 560M	03E C 94	958.9	204	490	490	671	P94	622	914	966	165	242	8	M56	2 1/4\”	1600	406	102	1340	1000	560
580	01 B 580M	1387	3138	144	310	749.3	172	84.1	84.1	706	11	25	195	01 C 580M	01 C 28	816	120	342	348	273	P28	578	857	896	102	220	8	M36	1 1/2\”	1346	304	90	1156	630	580
580	02 B 580M	2336	4836	227	300	812.8	232	119.1	119.1	754	16	37	340	02 C 580M	02 C 49	882.7	152	356	380	386	P49	635	932	984	115	280	8	M42	1 3/4\”	1448	382	90	1270	1000	580
600	01 B 600M	1431	3311	147	300	774.7	172	84.1	84.1	732	11	25	210	01 C 600M	01 C 29	841.4	120	342	348	290	P29	597	888	928	105	220	8	M36	1 1/2\”	1372	304	90	1200	630	600
600	02 B 600M	2905	5992	300	290	838.2	214	119.1	119.1	786	18	27	381	02 C 600M	02 C 50	914.4	152	388	394	454	P50	673	984	1036	114	280	8	M42	1 3/4\”	1524	382	92	1345	1050	600
600	03E B 600M	4887	9130	400	270	890	310	184	184	826	27	47	680	03E C 600M	03E C 95	990	204	490	490	720	P95	622	914	966	165	242	8	M56	2 1/4\”	1600	406	102	1340	930	600

Request Informations

Wanting more information about MBY? Contact us now! Tell us your need and we will contact with you within 24 hours.

MBY BEARING

About MBY

Our History

SJQ Group

RDC Bearing

SJQ Bearing

Eisenberg Bearing

Notice

MBY BEARING

Spherical Roller Bearings

Cylindrical Roller Bearings

Thrust Spherical Roller Bearings

Taper Roller Bearings

Slewing Bearings

Notice

MBY BEARING

Most Advanced Forging Workshop

Deep Cryogentic Treatment (DCT) Line

Laboratory

OEM Branding Service

Notice

MBY BEARING

Be Our Partner

OEM Service

Special Industrial Solutions

Notice

Notice

Split Cylindrical Roller Bearing

Product Parameters

PRODUCTS

INFORMATION

CONTACT
