Pillow Blocks SER2 Series

Pillow Blocks SER2 series are housed bearings designed for supporting rotating shafts, typically used in industrial and mechanical equipment with light to medium loads. This series features a compact design and reliable self-aligning capability, and is widely used in a variety of applications requiring stable shaft support.

Inquiry Now
Send Email

Notice: The company’s products are still being uploaded. If you can’t find what you’re looking for, please feel free to submit a request form directly.

Product Parameters

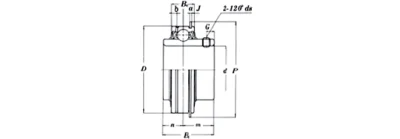

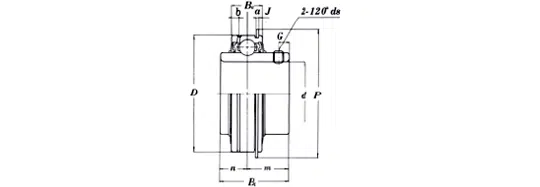

Bearing No. Bore Dia of Bearing Dimensions (inch)(mm) Basic  Basic  Mass
Dynamic Static  (kg)
Load  Load
d D Bi Be n m E a h R J P G ds Rating  Rating
(in) (mm) lbf.(N) lbf.(N)
SER204-12 3/4 20 1.8504 1.2205 0.6259 0.4527 0.7677 0.4941 0.0421 0.1575 0.1941 0.0937 2.0669 0.1969 1/4-28UNF 2830 1650 0.46
SER205-14 7/8 25 2.0472 1.374 0.7519 0.5157 0.8582 0.6122 0.0421 0.1969 0.2374 0.0937 2.2717 0.2165 1/4-28UNF 3100 1740 0.6
SER206-18 1-1/8 300 0 2.4409 1.5 0.874 0.626 0.874 0.676 0.065 0.2165 0.2421 0.1252 2.6575 0.2165 1/4-28UNF 4300 2500 0.86
SER207-20 1-1/4 350 2.8346 1.689 0.937 0.689 1 0.7547 0.065 0.2165 0.2815 0.1252 3.0906 0.2559 5/16-24UNF 5650 3400 1.39
SER208-24 1-1/2 40 3.1496 1.937 1.0944 0.748 1.1889 0.9122 0.065 0.2362 0.3602 0.1252 3.4016 0.315 5/16-24UNF 6400 4000 1.79
SER209-26 1-5/8 45 3.3465 1.937 1.0944 0.748 1.189 0.9122 0.065 0.2362 0.3602 0.1252 3.5984 0.315 5/16-24UNF 7200 4510 1.98
SER210-30 1-7/8 50 3.5433 2.0315 1.1259 0.748 1.2835 0.8823 0.0949 0.2953 0.3303 0.1252 3.7913 0.3543 3/8-24UNF 7700 5120 2.16
SER211-32 2 55 3.937 2.189 1.189 0.874 1.315 0 0.0949 0.2953 0 0.1252 4.1929 0.3543 3/8-24 82000 5710 0
SER212-36 2-1/4 60 4.3307 3.563 1.252 1 1.563 0 0.0949 0.2953 0 0.1252 4.5906 0.4134 3/8-24 88500 6330 0
