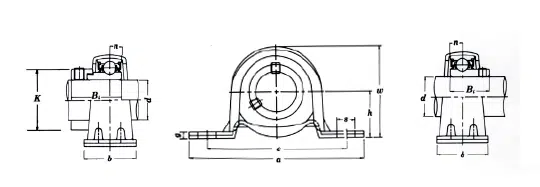

Unit No. | Dimensions(mm) | Bolt Used(mm) | Bearing No. | Housing No. | Mass(kg) | |||||||||||||
d | H | J | L | A | N | t | H0 | S | S1 | B | B1 | d1 | SBLP | SALP | ||||
201 | 12 | 22.2 | 68 | 86 | 25 | 9.5 | 3.2 | 43.8 | 6 | 6.5 | 23 | 28.6 | 28.6 | M8 | SA201 | PP203 | 0.2 | 0.36 |
202 | 15 | 22.2 | 68 | 86 | 25 | 9.5 | 3.2 | 43.8 | 6 | 6.5 | 23 | 28.6 | 28.6 | M8 | SA202 | PP203 | 0.2 | 0.36 |
203 | 17 | 22.2 | 68 | 86 | 25 | 9.5 | 3.2 | 43.8 | 6 | 6.5 | 23 | 28.6 | 28.6 | M8 | SA203 | PP203 | 0.2 | 0.15 |
204 | 20 | 25.4 | 76 | 98 | 30 | 9.5 | 3.2 | 50.5 | 7 | 7 | 25 | 29.5 | 33.3 | M8 | SA204 | PP204 | 0.23 | 0.2 |
205 | 25 | 28.6 | 86 | 108 | 32 | 11.5 | 4 | 56.6 | 7.5 | 7.5 | 27 | 30.5 | 38.1 | M10 | SB205 | PP205 | 0.32 | 0.28 |
206 | 30 | 33.3 | 95 | 117 | 38 | 11.5 | 4 | 66.3 | 8 | 8 | 29 | 33.9 | 44.5 | M10 | SB206 | PP206 | 0.5 | 0.42 |
207 | 35 | 39.7 | 106 | 129 | 42 | 11.5 | 4.6 | 78 | 8.5 | 8.5 | 32 | 37.5 | 55.6 | M10 | SB207 | PP207 | 0.6 | 0.55 |
