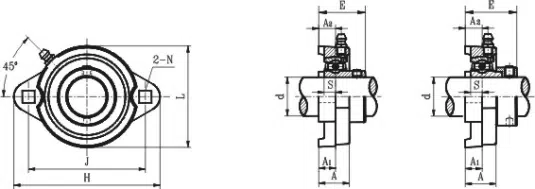

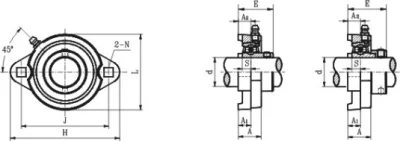

| Unit No. | Dimensions(mm) | Bolt Used | Bearing No. | Housing No. | Mass(kg) | ||||||||||||||
| d | H | J | L | A 2 | A | h | N | S | S 1 | E | E 1 | d 1 | (mm) | (in) | SAPFTD | SBPFTD | |||
| SAPFTD204 | 20 | 91 | 71.5 | 63 | 10.2 | 20 | 2.5 | 8.6 | 7 | 7 | 29 | 33.5 | 33.3 | M8 | 5/16 | SA204 | PFTD204 | 0.29 | 0.27 |
| SAPFTD205 | 25 | 96 | 76.2 | 69 | 8.7 | 19 | 2.5 | 8.6 | 7.5 | 7.5 | 30.5 | 34 | 38.1 | M8 | 5/16 | SA205 | PFTD205 | 0.4 | 0.38 |
| SBPFTD206 | 30 | 113 | 90.5 | 79 | 11.5 | 22 | 3 | 10.5 | 8 | 8 | 34 | 37.9 | 44.5 | M10 | 3/8 | SB206 | PFTD206 | 0.6 | 0.54 |
