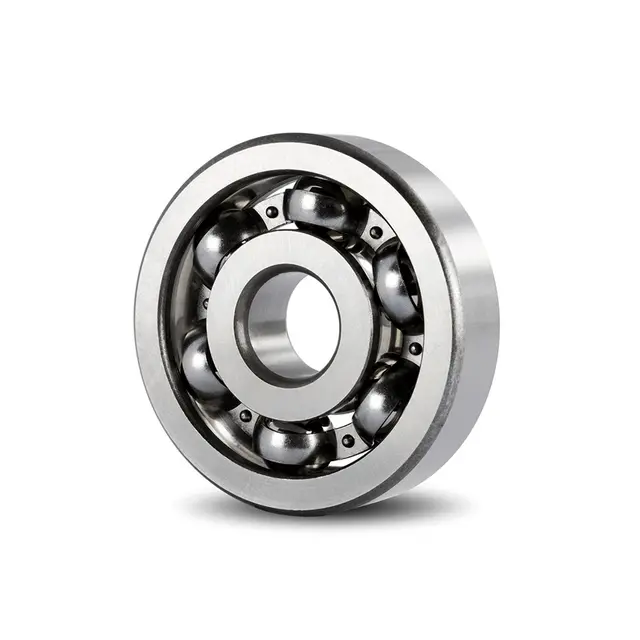

Deep Groove Ball Bearing

Deep groove ball bearings, also known as DGBB bearings, are the typical rolling bearings that have the widest application. MBY bearings, as a professional deep groove ball bearing manufacturer and exporter, produces basic China deep groove ball bearings made up of one inner ring, one outer ring, one cage, and a group of balls. These bearings can bear both radial and axial load capacity, making them suitable for working conditions with higher rotating speeds, and lower noise, and vibration levels. Additionally, this kind of bearing is easy to mount or dismount and requires less maintenance and inspection.

Inquiry Now
Send Email

Notice: The company’s products are still being uploaded. If you can’t find what you’re looking for, please feel free to submit a request form directly.

Product Parameters

Title Type Inner diameter(mm) Outer diameter(mm) Width(mm) Mass(kg)
Deep Groove Ball Bearing 6014 70 110 20 0.575
Deep Groove Ball Bearing 6214 70 125 24 1.084
Deep Groove Ball Bearing 6314 70 150 35 2.55
Deep Groove Ball Bearing 6414 70 180 42 4.896
Deep Groove Ball Bearing 6015 75 115 20 0.603
Deep Groove Ball Bearing 6215 75 130 25 1.71
Deep Groove Ball Bearing 6315 75 160 37 3.05
Deep Groove Ball Bearing 6415 75 190 45 5.739
Deep Groove Ball Bearing 61915 75 105 16 0.42
Deep Groove Ball Bearing 6016 80 125 22 0.821
Deep Groove Ball Bearing 16016 80 125 14 0.71
Deep Groove Ball Bearing 6216-Z 80 140 26 1.45
Deep Groove Ball Bearing 6216 80 140 26 1.448
Deep Groove Ball Bearing 6316 80 170 39 3.61
Deep Groove Ball Bearing 6416 80 200 48 6.76
Deep Groove Ball Bearing 6017 85 130 22 0.848
Deep Groove Ball Bearing 6217 85 150 28 1.803
Deep Groove Ball Bearing 6217N 85 150 28 1.77
Deep Groove Ball Bearing 6217-Z 85 150 28 1.82
Deep Groove Ball Bearing 6317 85 180 41 4.284
Deep Groove Ball Bearing 6417 85 210 52 7.933
Deep Groove Ball Bearing 6018 90 140 24 1.1
Deep Groove Ball Bearing 16018 90 140 16 1.018
Deep Groove Ball Bearing 6218N 90 160 30 2.97
Deep Groove Ball Bearing 6318 90 190 43 4.97
Deep Groove Ball Bearing 6318M 90 190 43 6.25
Deep Groove Ball Bearing 6418 90 225 54 9.56
Deep Groove Ball Bearing 61918 90 125 18 0.68
Deep Groove Ball Bearing 61818 90 115 13 0.303
Deep Groove Ball Bearing 6219 95 170 32 2.75
Deep Groove Ball Bearing 6319 95 200 45 5.74
Deep Groove Ball Bearing 61919M 95 130 18 0.67
Deep Groove Ball Bearing 16020 100 150 16 1.12
Deep Groove Ball Bearing 6020 100 150 24 1.18
Deep Groove Ball Bearing 6220 100 180 34 3.19
Deep Groove Ball Bearing 6220-Z 100 180 34 3.19
Deep Groove Ball Bearing 6320 100 215 47 7.07
Deep Groove Ball Bearing 6320M 100 215 47 8.89
Deep Groove Ball Bearing 6420 100 250 58 12.9
Deep Groove Ball Bearing 68220X2 100 180 28 2.7
Deep Groove Ball Bearing 61820-2RS 100 125 13 0.346
Deep Groove Ball Bearing 61920M 100 140 20 1.08
Deep Groove Ball Bearing 61920 100 140 20 0.96
Deep Groove Ball Bearing 6021 105 160 26 1.53
Deep Groove Ball Bearing 16021M 105 160 18 1.2
Deep Groove Ball Bearing 6221 105 190 36 3.78
Deep Groove Ball Bearing 721 105 180 22 2.61
Deep Groove Ball Bearing 6321 105 225 49 8.25
Deep Groove Ball Bearing 16022 110 170 19 1.79
Deep Groove Ball Bearing 6022 110 170 28 2.07
Deep Groove Ball Bearing 6022M 110 170 28 2.72
Deep Groove Ball Bearing 6022-2Z 110 170 38 4.35
Deep Groove Ball Bearing 6222 110 200 38 4.42
Deep Groove Ball Bearing 6222-2Z 110 200 38 4.61
Deep Groove Ball Bearing 6322 110 240 50 9.53
Deep Groove Ball Bearing 6422 110 280 65 18.34
Deep Groove Ball Bearing 61822MA 110 140 16 0.6
Deep Groove Ball Bearing 61922 110 150 20 0.84
Deep Groove Ball Bearing 6024 120 180 28 2.21
Deep Groove Ball Bearing 6024-2RS 120 180 28 2.21
Deep Groove Ball Bearing 16024M 120 180 19 1.8
Deep Groove Ball Bearing 6024-2Z 120 180 28 2.31
Deep Groove Ball Bearing 6224 120 215 40 6.4
Deep Groove Ball Bearing 6224M 120 215 40 6.33
Deep Groove Ball Bearing 6324 120 260 55 16
Deep Groove Ball Bearing 6324M 120 260 55 15.44
Deep Groove Ball Bearing 61824 120 150 16 0.65
Deep Groove Ball Bearing 61924MA 120 165 22 1.4
Deep Groove Ball Bearing 16026 130 200 22 2.76
Deep Groove Ball Bearing 6026 130 200 33 3.08
Deep Groove Ball Bearing 6226 130 230 40 6.12
Deep Groove Ball Bearing 6326M 130 280 58 16.4
Deep Groove Ball Bearing 6326 130 280 58 14
Deep Groove Ball Bearing 726 130 190 19 1.7
Deep Groove Ball Bearing 726M 130 190 19 1.67
Deep Groove Ball Bearing 61926MA 130 180 24 1.8
Deep Groove Ball Bearing 61926M 130 180 24 1.8
Deep Groove Ball Bearing 61926 130 180 24 1.56
Deep Groove Ball Bearing 543574 137.5 215 40 5.64
Deep Groove Ball Bearing 6028M 140 210 33 3.74
Deep Groove Ball Bearing 6028 140 210 33 3.2
Deep Groove Ball Bearing 6028Z 140 210 33 3.55
Deep Groove Ball Bearing 6228 140 250 42 7.77
Deep Groove Ball Bearing 16028M 140 210 22 2.86
Deep Groove Ball Bearing 16028 140 210 22 2.57
Deep Groove Ball Bearing 6328M 140 300 62 23.1
Deep Groove Ball Bearing 6328 140 300 62 18.33
Deep Groove Ball Bearing 61828M 140 175 18 0.93
Deep Groove Ball Bearing 61828 140 175 18 0.87
Deep Groove Ball Bearing 61928M 140 190 24 2.06
Deep Groove Ball Bearing 61928 140 190 24 1.9
Deep Groove Ball Bearing 6030M 150 225 35 4.14
Deep Groove Ball Bearing 6030 150 225 35 3.94
Deep Groove Ball Bearing 16030M 150 225 24 3.77
Deep Groove Ball Bearing 16030 150 225 24 3.1
Deep Groove Ball Bearing 6230MB 150 270 45 11.24
Deep Groove Ball Bearing 6230M 150 270 45 11.24
Deep Groove Ball Bearing 6230 150 270 45 9.85
Deep Groove Ball Bearing 6330 150 320 65 25.96
Deep Groove Ball Bearing 61930 150 210 28 3.16
Deep Groove Ball Bearing 61830MA 150 190 20 1.4
Deep Groove Ball Bearing 6030X1M 150 224.5 35 NULL 4.98
Deep Groove Ball Bearing 6032M 160 240 38 6.08
Deep Groove Ball Bearing 6032 160 240 38 4.83
Deep Groove Ball Bearing 16032 160 240 25 4.6
Deep Groove Ball Bearing 6232M 160 290 48 14.6
Deep Groove Ball Bearing 6332M 160 340 68 26.43
Deep Groove Ball Bearing 6332 160 340 68 26.43
Deep Groove Ball Bearing 61832MA 160 200 20 1.25
Deep Groove Ball Bearing 61932 160 220 28 3.16
Deep Groove Ball Bearing 733 165 250.5 35 6.44
Deep Groove Ball Bearing 6034X1 170 259.5 42 6.88
Deep Groove Ball Bearing 6034 170 260 42 8.42
Deep Groove Ball Bearing 6234 170 310 52 15.241
Deep Groove Ball Bearing 16034F3 170 260 28 5.63
Deep Groove Ball Bearing 16034 170 260 28 3.1
Deep Groove Ball Bearing 6334M 170 360 72 36.98
Deep Groove Ball Bearing 6334 170 360 72 31.3
Deep Groove Ball Bearing 61834M 170 215 22 1.81
Deep Groove Ball Bearing 61934 170 230 28 3.4
Deep Groove Ball Bearing NULL 170 230 38 4.4
Deep Groove Ball Bearing 6034M/YA1 170 265 42 8.6
Deep Groove Ball Bearing 6034X1M 170 270 42 9.6
Deep Groove Ball Bearing 6036M 180 280 46 10.5
Deep Groove Ball Bearing 6036 180 280 46 9.04
Deep Groove Ball Bearing 6036X1M 180 279.5 46 11
Deep Groove Ball Bearing 16036 180 280 31 7.3
Deep Groove Ball Bearing 6236M 180 320 52 17.8
Deep Groove Ball Bearing 6336 180 380 75 34.92
Deep Groove Ball Bearing 61836M 180 225 22 2
Deep Groove Ball Bearing 61936 180 225 22 5.17
Deep Groove Ball Bearing 61936X1 180 259.5 33 6.01
Deep Groove Ball Bearing 61934M 180 259.5 52 8.61
Deep Groove Ball Bearing 61838 190 240 24 2.8
Deep Groove Ball Bearing 61938 190 260 33 5.4
Deep Groove Ball Bearing 61938X1M 190 269.5 33 6.87
Deep Groove Ball Bearing 16038 190 290 31 8
Deep Groove Ball Bearing 6038 190 290 46 11.5
Deep Groove Ball Bearing 6238 190 340 55 25.6
Deep Groove Ball Bearing 6238M 190 340 55 23
Deep Groove Ball Bearing 6338 190 400 78 50
Deep Groove Ball Bearing 6640M-2 200 230 22 1.51
Deep Groove Ball Bearing 61840 200 250 24 3
Deep Groove Ball Bearing 6640M-1 200 250 33 3.92
Deep Groove Ball Bearing 61940X3M 200 269.5 51 7.2
Deep Groove Ball Bearing 61940X1M-1 200 279.5 38 7.25
Deep Groove Ball Bearing 61940X1M-2 200 289.5 38 8.7
Deep Groove Ball Bearing 61940 200 280 38 7.5
Deep Groove Ball Bearing 16040 200 310 34 10.4
Deep Groove Ball Bearing 6040 200 310 51 14.4
Deep Groove Ball Bearing 6040X1M 200 309.5 51 14.3
Deep Groove Ball Bearing 6240 200 360 58 27.4
Deep Groove Ball Bearing 6240M 200 360 58 26.7
Deep Groove Ball Bearing 6340 200 420 80 56
Deep Groove Ball Bearing 61844 220 270 24 3.2
Deep Groove Ball Bearing 61944 220 300 38 9.3
Deep Groove Ball Bearing 60944MA 220 300 25 5
Deep Groove Ball Bearing 63944M 220 300 70 11.7
Deep Groove Ball Bearing 61944X1M 220 309.5 38 9.3
Deep Groove Ball Bearing 16044 220 340 37 12.7
Deep Groove Ball Bearing 6044 220 340 56 18.4
Deep Groove Ball Bearing 6244 220 400 65 38.6
Deep Groove Ball Bearing 6344 220 460 88 73
Deep Groove Ball Bearing 61946X3M 230 329.5 40 11.6
Deep Groove Ball Bearing 61848 240 300 28 4.7
Deep Groove Ball Bearing 61948 240 320 38 8.36
Deep Groove Ball Bearing 16048 240 360 37 15
Deep Groove Ball Bearing 6048X1M 240 359.5 56 20.7
Deep Groove Ball Bearing 6048 240 360 56 26.7
Deep Groove Ball Bearing 6248 240 440 72 51.5
Deep Groove Ball Bearing 6348 240 500 95 93
Deep Groove Ball Bearing 61852 260 320 28 4.9
Deep Groove Ball Bearing 61952 260 360 46 15.1
Deep Groove Ball Bearing 61952X1M-1 260 369.5 46 16.5
Deep Groove Ball Bearing 61952X1M/1 260 370 46 17
Deep Groove Ball Bearing 62952X1M-1 260 369.5 60 19.5
Deep Groove Ball Bearing 62952X1M-2 260 379.5 60 22
Deep Groove Ball Bearing 6052X2M 260 400 46 32.2
Deep Groove Ball Bearing 16052 260 400 44 21.5
Deep Groove Ball Bearing 6052 260 400 65 28.3
Deep Groove Ball Bearing 6252 260 480 80 66
Deep Groove Ball Bearing 6352 260 540 102 116
Deep Groove Ball Bearing 6052X1M 260 399.5 65 28.8
Deep Groove Ball Bearing 61856 280 350 33 7.5
Deep Groove Ball Bearing 62956X3M 280 375 65 16.2
Deep Groove Ball Bearing 61956 280 380 46 15.2
Deep Groove Ball Bearing 61956X1M-2 280 389.5 46 17.6
Deep Groove Ball Bearing 61956X1M-1 280 390 46 17.6
Deep Groove Ball Bearing 16056 280 420 44 23
Deep Groove Ball Bearing 6056 280 420 65 31
Deep Groove Ball Bearing 6056X1 280 419.6 65 32.2
Deep Groove Ball Bearing 6256 280 500 80 71
Deep Groove Ball Bearing 6356 280 580 108 140
Deep Groove Ball Bearing 61860 300 380 38 10.6
Deep Groove Ball Bearing 61960 300 420 56 22.1
Deep Groove Ball Bearing 61960X1 300 419.5 56 20.6
Deep Groove Ball Bearing 16060 300 460 50 33
Deep Groove Ball Bearing 6060X2 300 460 68 49
Deep Groove Ball Bearing 6060 300 460 74 44.7
Deep Groove Ball Bearing 6260 300 540 85 85.5
Deep Groove Ball Bearing 6060X1 300 459.5 74 45
Deep Groove Ball Bearing 16060X3 300 479 60 45
Deep Groove Ball Bearing 61864 320 400 38 11.3
Deep Groove Ball Bearing 864 320 412 38 13.5
Deep Groove Ball Bearing 16964 320 440 37 17
Deep Groove Ball Bearing 61964 320 440 56 24.9
Deep Groove Ball Bearing 16064 320 480 74 34
Deep Groove Ball Bearing 6064 320 480 74 46.7
Deep Groove Ball Bearing 6264 320 580 92 110
Deep Groove Ball Bearing 62964X3 320 459.5 70 48.4
Deep Groove Ball Bearing 61964X3 320 459.5 60 34
Deep Groove Ball Bearing 61868 340 420 38 12
Deep Groove Ball Bearing 61968 340 460 56 27
Deep Groove Ball Bearing 16068 340 520 57 45
Deep Groove Ball Bearing 6068 340 520 82 65.8
Deep Groove Ball Bearing 6268 340 620 92 115
Deep Groove Ball Bearing 60872 340 440 25 7
Deep Groove Ball Bearing 61872 360 440 38 13
Deep Groove Ball Bearing 61972 360 480 56 28.5
Deep Groove Ball Bearing 61972X3 360 509.5 70 47.2
Deep Groove Ball Bearing 16072 360 540 57 50
Deep Groove Ball Bearing 6072 360 540 82 65
Deep Groove Ball Bearing 6272 360 650 95 145
Deep Groove Ball Bearing 61876 360 480 46 21.5
Deep Groove Ball Bearing 61976 380 520 65 38.5
Deep Groove Ball Bearing 16076 380 560 57 52
Deep Groove Ball Bearing 6076 380 560 82 69
Deep Groove Ball Bearing 60880 380 500 31 17
Deep Groove Ball Bearing 61880 400 500 46 22
Deep Groove Ball Bearing 60980 400 540 44 29
Deep Groove Ball Bearing 61980 400 540 65 43.6
Deep Groove Ball Bearing 6080 400 600 90 81
Deep Groove Ball Bearing 61982X2 410 559.5 82 54
Deep Groove Ball Bearing 61884 420 520 46 23
Deep Groove Ball Bearing 61984 420 560 65 45
Deep Groove Ball Bearing 6084 420 620 90 94
Deep Groove Ball Bearing 60888 440 540 31 18
Deep Groove Ball Bearing 61888 440 540 46 24
Deep Groove Ball Bearing 61988 440 600 74 63
Deep Groove Ball Bearing 6088 440 650 94 110
Deep Groove Ball Bearing 61892 460 580 56 35.6
Deep Groove Ball Bearing 61992 460 620 74 63
Deep Groove Ball Bearing 6092 460 680 100 125
Deep Groove Ball Bearing 61896 480 600 56 37
Deep Groove Ball Bearing 61996 480 650 78 75
Deep Groove Ball Bearing 6096 480 700 100 128
Deep Groove Ball Bearing 608/500 500 620 37 21
Deep Groove Ball Bearing 618/500 500 620 56 37.8
Deep Groove Ball Bearing 619/500 500 670 78 82
Deep Groove Ball Bearing 160/500X1 500 719 71 111
Deep Groove Ball Bearing 60/500 500 720 100 138
Deep Groove Ball Bearing 618/530 530 650 56 40
Deep Groove Ball Bearing 609/530 530 710 57 62
Deep Groove Ball Bearing 619/530 530 710 82 92
Deep Groove Ball Bearing 60/530 530 780 112 190
Deep Groove Ball Bearing 608/560 560 680 37 31
Deep Groove Ball Bearing 618/560 560 680 56 43
Deep Groove Ball Bearing 619/560 560 750 85 108
Deep Groove Ball Bearing 60/560 560 820 115 212
Deep Groove Ball Bearing 608/600 600 730 42 41
Deep Groove Ball Bearing 618/600 600 730 60 53
Deep Groove Ball Bearing 619/600 600 800 90 126
Deep Groove Ball Bearing B600-17/HC 600 819 90 135.4
Deep Groove Ball Bearing 60/600 600 870 118 232
Deep Groove Ball Bearing 608/630 630 780 48 42
Deep Groove Ball Bearing 618/630 630 780 69 74
Deep Groove Ball Bearing 609/630 630 850 71 112
Deep Groove Ball Bearing 619/630 630 850 100 162
Deep Groove Ball Bearing 60/630 630 920 128 287
Deep Groove Ball Bearing 618/670 670 820 69 81.6
Deep Groove Ball Bearing 609/670 670 900 73 148
Deep Groove Ball Bearing 619/670 670 900 103 188
Deep Groove Ball Bearing 60/670 670 980 136 348
Deep Groove Ball Bearing 618/710 710 870 74 95
Deep Groove Ball Bearing 609/710 710 950 78 152
Deep Groove Ball Bearing 619/710 710 950 106 223
Deep Groove Ball Bearing 60/710 710 1030 140 380
Deep Groove Ball Bearing 618/750 750 920 78 113
Deep Groove Ball Bearing 619/750 750 1000 112 260
Deep Groove Ball Bearing 60/750 750 1090 150 490
Deep Groove Ball Bearing 608/800 800 980 57 103
Deep Groove Ball Bearing 618/800 800 980 82 135
Deep Groove Ball Bearing 619/800 800 1060 115 280
Deep Groove Ball Bearing 60/800 800 1150 155 540
Deep Groove Ball Bearing 608/850 850 1030 57 78
Deep Groove Ball Bearing 618/850 850 1030 82 145
Deep Groove Ball Bearing 619/850 850 1120 118 315
Deep Groove Ball Bearing 60/850 850 1220 165 635
Deep Groove Ball Bearing 618/900 900 1090 85 163
Deep Groove Ball Bearing 619/900 900 1180 122 355
Deep Groove Ball Bearing 60/900 900 1280 170 725
Deep Groove Ball Bearing 618/950 950 1150 90 195
Deep Groove Ball Bearing 619/950 950 1250 132 395
Deep Groove Ball Bearing 60/950 950 1360 180 870
Deep Groove Ball Bearing 608/1000 1000 1220 71 180
Deep Groove Ball Bearing 618/1000 1000 1220 100 250
Deep Groove Ball Bearing 609/1000 1000 1320 103 415
Deep Groove Ball Bearing 619/1000 1000 1320 140 520
Deep Groove Ball Bearing 60/1000 1000 1420 185 940
Deep Groove Ball Bearing 618/1060 1060 1280 100 265
Deep Groove Ball Bearing 619/1060 1060 1400 150 630
Deep Groove Ball Bearing 60/1060 1060 1500 195 1100
Deep Groove Ball Bearing 618/1120 1120 1360 106 320
Deep Groove Ball Bearing 619/1120 1120 1460 150 660
Deep Groove Ball Bearing 60/1120 1120 1580 200 1270
Deep Groove Ball Bearing 618/1180 1180 1420 106 332
Deep Groove Ball Bearing D618/1180F1 1180 4420 106/166 450
Deep Groove Ball Bearing 619/1180 1180 1540 160 780
Deep Groove Ball Bearing 60/1180 1180 4660 212 1420
Deep Groove Ball Bearing 618/1250 1250 1500 112 390
Deep Groove Ball Bearing 619/1250 1250 1630 170 925
Deep Groove Ball Bearing 60/1250 1250 1750 218 1620
Deep Groove Ball Bearing 618/1320 1320 1600 122 510
Deep Groove Ball Bearing 609/1320 1320 1720 128 840
Deep Groove Ball Bearing 619/1320 1320 1720 175 1060
Deep Groove Ball Bearing 60/1320 1320 4850 230 1900
Deep Groove Ball Bearing 618/1400 1400 1700 132 620
Deep Groove Ball Bearing 619/1400 1400 1820 185 1260
Deep Groove Ball Bearing 60/1400 1400 4950 243 2190
Deep Groove Ball Bearing 618/1500 1500 1820 140 750
Deep Groove Ball Bearing 619/1500 1500 1950 195 1520
Deep Groove Ball Bearing 60/1500 1500 4120 272 3000
Deep Groove Ball Bearing 618/1600 1600 1950 155 970
Deep Groove Ball Bearing 619/1600 1600 2060 200 1660
Deep Groove Ball Bearing 60/1600 1600 4240 280 3390
Deep Groove Ball Bearing 618/1700 1700 2060 160 1120
Deep Groove Ball Bearing 619/1700 1700 2180 212 1980
Deep Groove Ball Bearing 60/1700 1700 4360 290 3800
Deep Groove Ball Bearing 619/1800 1800 2300 218 2200
Deep Groove Ball Bearing 60/1800 1800 2500 308 4550
Deep Groove Ball Bearing 619/1900 1900 2430 230 2600

Request Informations

Wanting more information about MBY? Contact us now! Tell us your need and we will contact with you within 24 hours.

Facebook Twitter Youtube

ABOUT

Old Website: mby-bearing.com

PRODUCTS

INFORMATION

CONTACT

  • [email protected]
  • 0086-510-82609444
  • 19th Floor,No. 198, Minfeng Road, Beitang District, Wuxi, China.

© Copyright 2006-2024 Wuxi MBY Bearing Technology Co.,Ltd
