We can provide you with customized services for the entire process, starting from raw materials, including forging, annealing, turning, heat treatment and grinding.

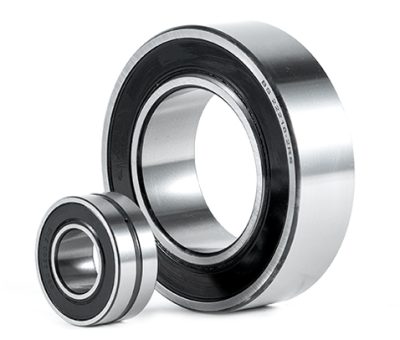

The Sealed Spherical Roller Bearing is provided with contact sealing rings on both sides and lubricating grease, and its internal design is the same as that of the Split-case Spherical Roller Bearing.It can reduce maintenance requirements, prolong service life and protect the environment.
Notice: The company’s products are still being uploaded. If you can’t find what you’re looking for, please feel free to submit a request form directly.

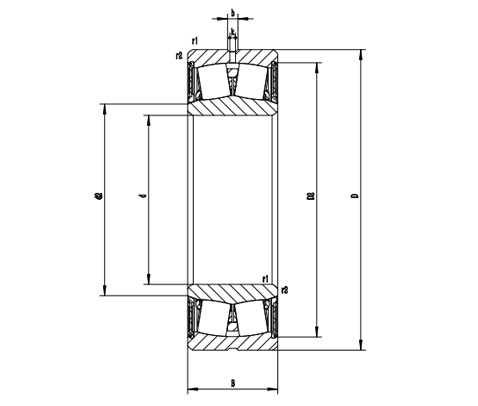

| Bearing number | Dimension（mm） | Basic rated load (KN) | Limiting Speed (r/min) | |||
|---|---|---|---|---|---|---|
| d | D | B | Dynamic | Static | ||
| BS2-2205-2RS | 25 | 52 | 23 | 49.9 | 44 | 3600 |
| BS2-2206-2RS | 30 | 62 | 25 | 66.1 | 60 | 3000 |
| BS2-2208-2RSK | 35 | 80 | 28 | 98.5 | 90 | 2300 |
| BS2-2207-2RS | 35 | 72 | 28 | 88.8 | 85 | 2500 |
| BS2-2209-2RSK | 40 | 85 | 28 | 104 | 98 | 2100 |
| BS2-2308-2RS | 40 | 90 | 38 | 155 | 140 | 2300 |
| BS2-2208-2RSK | 40 | 80 | 28 | 98.5 | 90 | 2300 |
| BS2-2208-2RS | 40 | 80 | 28 | 98.5 | 90 | 2300 |
| BS2-2209-2RSK | 45 | 85 | 28 | 104 | 98 | 2100 |
| BS2-2309-2RS | 45 | 100 | 42 | 190 | 183 | 2000 |
| BS2-2210-2RSK | 45 | 90 | 28 | 107 | 108 | 1900 |
| BS2-2209-2RS | 45 | 85 | 28 | 104 | 98 | 2100 |
| BS2-2310-2RS | 50 | 110 | 45 | 228 | 224 | 1800 |
| BS2-2210-2RSK | 50 | 90 | 28 | 107 | 108 | 1900 |
| BS2-2211-2RSK | 50 | 100 | 31 | 129 | 127 | 1700 |
| BS2-2210-2RS | 50 | 90 | 28 | 107 | 108 | 1900 |
| Bearing number | Dimension（mm） | Basic rated load (KN) | Limiting Speed (r/min) | |||
|---|---|---|---|---|---|---|
| d | D | B | Dynamic | Static | ||
| BS2-2211-2RS | 55 | 100 | 31 | 129 | 127 | 1700 |
| BS2-2311-2RS | 55 | 120 | 49 | 280 | 280 | 1600 |
| BS2-2211-2RSK | 55 | 100 | 31 | 129 | 127 | 1700 |
| BS2-2212-2RSK | 55 | 110 | 34 | 159 | 166 | 1600 |
| BS2-2312-2RS | 60 | 130 | 53 | 325 | 335 | 1500 |
| BS2-2214-2RSK | 60 | 125 | 38 | 213 | 228 | 1300 |
| BS2-2212-2RS | 60 | 110 | 34 | 159 | 166 | 1600 |
| BS2-2212-2RSK | 60 | 110 | 34 | 159 | 166 | 1600 |
| BS2-2213-2RSK | 60 | 120 | 38 | 198 | 216 | 1400 |
| BS2-2213-2RSK | 65 | 120 | 38 | 198 | 216 | 1400 |
| BS2-2215-2RSK | 65 | 130 | 38 | 217 | 240 | 1300 |
| BS2-2313-2RS | 65 | 140 | 56 | 357 | 360 | 1400 |
| BS2-2213-2RS | 65 | 120 | 38 | 198 | 216 | 1400 |
| BS2-2216-2RSK | 70 | 140 | 40 | 243 | 270 | 1200 |
| BS2-2214-2RS | 70 | 125 | 38 | 213 | 228 | 1300 |
| BS2-2314-2RS | 70 | 150 | 60 | 413 | 430 | 1200 |
| Bearing number | Dimension（mm） | Basic rated load (KN) | Limiting Speed (r/min) | |||
|---|---|---|---|---|---|---|
| d | D | B | Dynamic | Static | ||
| BS2-2214-2RSK | 70 | 125 | 38 | 213 | 228 | 1300 |
| BS2-2215-2RS | 75 | 130 | 38 | 217 | 240 | 1300 |
| BS2-2315-2RS | 75 | 160 | 64 | 462 | 475 | 1200 |
| BS2-2215-2RSK | 75 | 130 | 38 | 217 | 240 | 1300 |
| BS2-2217-2RSK | 75 | 150 | 44 | 291 | 325 | 1100 |
| BS2-2315-2RSK | 75 | 160 | 64 | 462 | 475 | 1200 |
| BS2-2316-2RS | 80 | 170 | 67 | 516 | 530 | 1200 |
| BS2-2216-2RSK | 80 | 140 | 40 | 243 | 270 | 1200 |
| BS2-2216-2RS | 80 | 140 | 40 | 243 | 270 | 1200 |
| BS2-2218-2RSK | 80 | 160 | 48 | 331 | 375 | 1000 |
| BS2-2217-2RS | 85 | 150 | 44 | 291 | 325 | 1100 |
| BS2-2217-2RSK | 85 | 150 | 44 | 291 | 325 | 1100 |
| BS2-2318-2RS5 | 90 | 190 | 73 | 637 | 695 | 1000 |
| BS2-2318-2RS5K | 90 | 190 | 73 | 637 | 695 | 1000 |
| BS2-2218-2RS | 90 | 160 | 48 | 331 | 375 | 1000 |
| BS2-2218-2RSK | 90 | 160 | 48 | 331 | 375 | 1000 |
| Bearing number | Dimension（mm） | Basic rated load (KN) | Limiting Speed (r/min) | |||
|---|---|---|---|---|---|---|
| d | D | B | Dynamic | Static | ||
| BS2-2220-2RS5K | 90 | 180 | 55 | 433 | 490 | 900 |
| BS2-2219-2RS | 95 | 170 | 51 | 393 | 450 | 1000 |
| BS2-2220-2RS5K | 100 | 180 | 55 | 433 | 490 | 900 |
| BS2-2222-2RS5K | 100 | 200 | 63 | 572 | 640 | 900 |
| BS2-2220-2RS5 | 100 | 180 | 55 | 433 | 490 | 900 |
| BS2-2222-2RS5K | 110 | 200 | 63 | 572 | 640 | 900 |
| BS2-2224-2RS5K | 110 | 215 | 69 | 652 | 765 | 800 |
| BS2-2222-2RS5 | 110 | 200 | 63 | 572 | 640 | 900 |
| BS2-2226-2CS5K | 115 | 230 | 75 | 758 | 930 | 400 |
| BS2-2224-2RS5K | 120 | 215 | 69 | 652 | 765 | 800 |
| BS2-2224-2RS5 | 120 | 215 | 69 | 652 | 765 | 800 |
