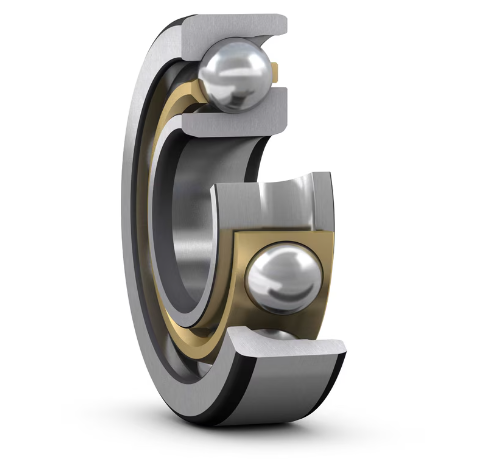

Angular Contact Ball Bearing

Angular contact ball bearing, also known as acbb bearing, is a kind of inseparable bearing. These bearings have raceways on both the inner ring and outer ring, allowing the inner ring and outer ring to make relative movement in the axial direction. Angular contact ball bearing applications are widely seen in many industries, as they can bear combined radial and axial loads and also work at higher rotating speeds. In general, the bigger the contact angle, the higher the axial load capacity is.

Inquiry Now
Send Email

Notice: The company’s products are still being uploaded. If you can’t find what you’re looking for, please feel free to submit a request form directly.

Product Parameters

Title ZWA Inner diameter (mm) Outer diameter (mm) Width (mm) Mass (kg)
Angular Contact Ball Bearing 7214ACM 70 125 24 1.1
Angular Contact Ball Bearing 7214CT 70 125 24 1.26
Angular Contact Ball Bearing 7214C 70 125 24 1.1
Angular Contact Ball Bearing 7314CM 70 150 35 3.01
Angular Contact Ball Bearing 7215ACM 75 130 25 1.2
Angular Contact Ball Bearing 7215C 75 130 25 1.2
Angular Contact Ball Bearing 7315ACM 75 160 37 3.57
Angular Contact Ball Bearing 7315B 75 160 37 3.3
Angular Contact Ball Bearing 7216C 80 140 26 1.45
Angular Contact Ball Bearing 7216ACQ5/DBYA3 80 140 26 1.45
Angular Contact Ball Bearing 7316BM 80 170 39 1.25
Angular Contact Ball Bearing 7416AC 80 200 48 7.18
Angular Contact Ball Bearing 7317BM 85 180 41 5.61
Angular Contact Ball Bearing 7317ACM 85 180 41 4.99
Angular Contact Ball Bearing 7218ACM 90 160 30 2.25
Angular Contact Ball Bearing 7218C 90 160 30 2.58
Angular Contact Ball Bearing 7318AC 90 190 43 5.82
Angular Contact Ball Bearing 7418ACM 90 225 54 11.6
Angular Contact Ball Bearing 7130819 95 120 9 0.248
Angular Contact Ball Bearing 7219C 95 170 32 2.7
Angular Contact Ball Bearing 7219BM 95 170 32 3.24
Angular Contact Ball Bearing 7219ACM 95 170 32 3.3
Angular Contact Ball Bearing 7319BM 95 200 45 7.07
Angular Contact Ball Bearing 7220C 100 180 34 3.30
Angular Contact Ball Bearing 7220AC 100 180 34 3.30
Angular Contact Ball Bearing 7220B 100 180 34 3.30
Angular Contact Ball Bearing 7320C 100 215 47 7.25
Angular Contact Ball Bearing 7320AC 100 215 47 7.25
Angular Contact Ball Bearing 7320B 100 215 47 7.25
Angular Contact Ball Bearing 7221C 105 190 36 3.95
Angular Contact Ball Bearing 7221AC 105 190 36 3.95
Angular Contact Ball Bearing 7221B 105 190 36 3.95
Angular Contact Ball Bearing 7321C 105 225 49 8.45
Angular Contact Ball Bearing 7321AC 105 225 49 8.45
Angular Contact Ball Bearing 7321B 105 225 49 8.45
Angular Contact Ball Bearing 7222C 110 200 38 4.65
Angular Contact Ball Bearing 7222AC 110 200 38 4.65
Angular Contact Ball Bearing 7222B 110 200 38 4.65
Angular Contact Ball Bearing 7322C 110 240 50 9.85
Angular Contact Ball Bearing 7322AC 110 240 50 9.85
Angular Contact Ball Bearing 7322B 110 240 50 9.85
Angular Contact Ball Bearing 7024B 120 180 28 2.40
Angular Contact Ball Bearing 7224C 120 215 40 6.10
Angular Contact Ball Bearing 7224AC 120 215 40 6.10
Angular Contact Ball Bearing 7224B 120 215 40 6.10
Angular Contact Ball Bearing 7324C 120 260 55 14.5
Angular Contact Ball Bearing 7324AC 120 260 55 14.5
Angular Contact Ball Bearing 7324B 120 260 55 14.5
Angular Contact Ball Bearing 7226C 130 230 40 6.95
Angular Contact Ball Bearing 7226AC 130 230 40 6.95
Angular Contact Ball Bearing 7226B 130 230 40 6.95
Angular Contact Ball Bearing 7326C 130 280 58 17.5
Angular Contact Ball Bearing 7326AC 130 280 58 17.5
Angular Contact Ball Bearing 7326B 130 280 58 17.5
Angular Contact Ball Bearing 7028B 140 210 33 3.85
Angular Contact Ball Bearing 7228C 140 250 42 8.85
Angular Contact Ball Bearing 7228AC 140 250 42 8.85
Angular Contact Ball Bearing 7228B 140 250 42 8.85
Angular Contact Ball Bearing 7328AC 140 300 62 21.5
Angular Contact Ball Bearing 7328B 140 300 62 21.5
Angular Contact Ball Bearing 7030B 150 225 35 4.70
Angular Contact Ball Bearing 7230AC 150 270 45 11.5
Angular Contact Ball Bearing 7230B 150 270 45 11.5
Angular Contact Ball Bearing 7330AC 150 320 65 26.0
Angular Contact Ball Bearing 7330B 150 320 65 26.0
Angular Contact Ball Bearing 7032B 160 240 38 5.75
Angular Contact Ball Bearing 7232AC 160 290 48 14.0
Angular Contact Ball Bearing 7232B 160 290 48 14.0
Angular Contact Ball Bearing 7234AC 170 310 52 17.5
Angular Contact Ball Bearing 7234B 170 310 52 17.5
Angular Contact Ball Bearing 7334AC 170 360 72 36.0
Angular Contact Ball Bearing 7334B 170 360 72 36.0
Angular Contact Ball Bearing 7036B 180 280 46 10.0
Angular Contact Ball Bearing 7236AC 180 320 52 18.0
Angular Contact Ball Bearing 7236B 180 320 52 18.0
Angular Contact Ball Bearing 7336AC 180 380 75 42.0
Angular Contact Ball Bearing 7336B 180 380 75 42.0
Angular Contact Ball Bearing 7038B 190 290 46 10.5
Angular Contact Ball Bearing 7238AC 190 340 55 22.0
Angular Contact Ball Bearing 7238B 190 340 55 22.0
Angular Contact Ball Bearing 7338AC 190 400 78 48.5
Angular Contact Ball Bearing 7338B 190 400 78 48.5
Angular Contact Ball Bearing 7340AC 200 420 80 53.0
Angular Contact Ball Bearing 7340B 200 420 80 53.0
Angular Contact Ball Bearing 7044B 220 340 56 18.0
Angular Contact Ball Bearing 7244B 220 400 65 37.0
Angular Contact Ball Bearing 7344B 220 460 88 70.0
Angular Contact Ball Bearing 7048B 240 360 56 19.0
Angular Contact Ball Bearing 7248B 240 440 72 49.0
Angular Contact Ball Bearing 7348B 240 500 95 88.5
Angular Contact Ball Bearing 71852AC 260 320 28 4.85
Angular Contact Ball Bearing 71952AC 260 360 46 13.5
Angular Contact Ball Bearing 7252B 260 480 80 66.0
Angular Contact Ball Bearing 71856AC 280 350 33 7.20
Angular Contact Ball Bearing 71956AC 280 380 46 15.0
Angular Contact Ball Bearing 7056C 280 420 65 30.0
Angular Contact Ball Bearing 7056AC 280 420 65 30.0
Angular Contact Ball Bearing 7056B 280 420 65 30.0
Angular Contact Ball Bearing 7256B 280 500 80 69.5
Angular Contact Ball Bearing 7060C 300 460 74 42.5
Angular Contact Ball Bearing 7060AC 300 460 74 42.5
Angular Contact Ball Bearing 7060B 300 460 74 42.5
Angular Contact Ball Bearing 7260B 300 540 85 86.5
Angular Contact Ball Bearing 7064AC 320 480 74 44.5
Angular Contact Ball Bearing 7064B 320 480 74 44.5
Angular Contact Ball Bearing 7264B 320 580 92 110
Angular Contact Ball Bearing 71868AC 340 420 38 10.5
Angular Contact Ball Bearing 71968AC 340 460 56 27.0
Angular Contact Ball Bearing 71968B 340 460 56 27.0
Angular Contact Ball Bearing 7068AC 340 520 82 61.5
Angular Contact Ball Bearing 7068B 340 520 82 61.5
Angular Contact Ball Bearing 7268B 340 620 92 125
Angular Contact Ball Bearing 71872AC 360 440 38 12.0
Angular Contact Ball Bearing 71972AC 360 480 56 28.5
Angular Contact Ball Bearing 71972B 360 480 56 28.5
Angular Contact Ball Bearing 7072AC 360 540 82 62.5
Angular Contact Ball Bearing 7072B 360 540 82 62.5
Angular Contact Ball Bearing 7272B 360 650 95 145
Angular Contact Ball Bearing 70876AC 380 480 31 13.5
Angular Contact Ball Bearing 71876B 380 480 46 18.0
Angular Contact Ball Bearing 71976AC 380 520 65 40.5
Angular Contact Ball Bearing 7076AC 380 560 82 65.5
Angular Contact Ball Bearing 7076B 380 560 82 65.5
Angular Contact Ball Bearing 71980AC 400 540 65 42.0
Angular Contact Ball Bearing 7080C 400 600 90 85.0
Angular Contact Ball Bearing 7080AC 400 600 90 85.0
Angular Contact Ball Bearing 7080B 400 600 90 85.0
Angular Contact Ball Bearing 7280B 400 720 103 190
Angular Contact Ball Bearing 71984AC 420 560 65 44.5
Angular Contact Ball Bearing 71984B 420 560 65 44.5
Angular Contact Ball Bearing 7084AC 420 620 90 88.5
Angular Contact Ball Bearing 7084B 420 620 90 88.5
Angular Contact Ball Bearing 7088AC 440 650 94 100
Angular Contact Ball Bearing 7088B 440 650 94 100
Angular Contact Ball Bearing 70892AC 460 580 37 24.5
Angular Contact Ball Bearing 71892B 460 580 56 34.5
Angular Contact Ball Bearing 71892AC 460 620 74 58.0
Angular Contact Ball Bearing 7092AC 460 680 100 120
Angular Contact Ball Bearing 7092B 460 680 100 120
Angular Contact Ball Bearing 7096AC 480 700 100 125
Angular Contact Ball Bearing 7096B 480 700 100 125
Angular Contact Ball Bearing 708/500AC 500 620 37 27.0
Angular Contact Ball Bearing 718/500AC 500 620 56 38.0
Angular Contact Ball Bearing 719/500AC 500 670 78 78.0
Angular Contact Ball Bearing 70/500AC 500 720 100 130
Angular Contact Ball Bearing 70/500B 500 720 100 130
Angular Contact Ball Bearing 718/530AC 530 650 56 39.5
Angular Contact Ball Bearing 718/530B 530 650 56 39.5
Angular Contact Ball Bearing 719/530AC 530 710 82 92.0
Angular Contact Ball Bearing 70/530AC 530 780 112 175
Angular Contact Ball Bearing 70/530B 530 780 112 180
Angular Contact Ball Bearing 718/560AC 560 680 56 41.5
Angular Contact Ball Bearing 719/560AC 560 750 85 105
Angular Contact Ball Bearing 70/560AC 560 820 115 195
Angular Contact Ball Bearing 708/600AC 600 730 42 38.5
Angular Contact Ball Bearing 718/600B 600 730 60 47.0
Angular Contact Ball Bearing 718/600AC 600 730 60 47.0
Angular Contact Ball Bearing 719/600AC 600 800 90 125
Angular Contact Ball Bearing 70/600B 600 870 118 230
Angular Contact Ball Bearing 718/670AC 670 820 69 80.0
Angular Contact Ball Bearing 718/670B 670 820 69 80.0
Angular Contact Ball Bearing 70/670AC 670 980 136 340
Angular Contact Ball Bearing 718/710AC 710 870 74 93.5
Angular Contact Ball Bearing 718/710B 710 870 74 93.5
Angular Contact Ball Bearing 719/710AC 710 950 106 195
Angular Contact Ball Bearing 70/710AC 710 1030 140 370
Angular Contact Ball Bearing 718/750AC 750 920 78 100
Angular Contact Ball Bearing 718/750B 750 920 78 100
Angular Contact Ball Bearing 70/750AC 750 1090 150 445
Angular Contact Ball Bearing 70/800AC 800 1150 155 500
Angular Contact Ball Bearing 718/850AC 850 1030 82 140
Angular Contact Ball Bearing 70/850AC 850 1220 165 595
Angular Contact Ball Bearing 70/900AC 900 1280 170 665
Angular Contact Ball Bearing 70/950AC 950 1360 180 805
Angular Contact Ball Bearing 718/1000AC 1000 1220 100 245
Angular Contact Ball Bearing 307101C 1000 1320 103 370
Angular Contact Ball Bearing 70/1000AC 1000 1420 185 890
Angular Contact Ball Bearing 70/1060AC 1060 1500 195 1050
Angular Contact Ball Bearing 718/1120AC 1120 1360 106 320
Angular Contact Ball Bearing 70/1120AC 1120 1580 200 1150
Angular Contact Ball Bearing 70/1180AC 1180 1660 212 1350
Angular Contact Ball Bearing 708/1250AC 1250 1500 80 295
Angular Contact Ball Bearing 718/1250AC 1250 1500 112 390
Angular Contact Ball Bearing 70/1250AC 1250 1750 218 1600
Angular Contact Ball Bearing 3214 70 125 39.7 1.9
Angular Contact Ball Bearing 3314 70 150 63.5 4.5
Angular Contact Ball Bearing 3218M 90 160 52.4 4.28
Angular Contact Ball Bearing 3318 90 190 73 9.25
Angular Contact Ball Bearing 3220X1D/W33 100 170 60.3 7.8
Angular Contact Ball Bearing 3221X2DC 105 190 79 10.6
Angular Contact Ball Bearing 3222X3P6 110 170 56 4.9
Angular Contact Ball Bearing 4222X3D 110 200 83 12
Angular Contact Ball Bearing 4024X2D 120 180 56 6
Angular Contact Ball Bearing 4024D 120 180 60 6.1
Angular Contact Ball Bearing 4024X3D 120 190 66 7.5
Angular Contact Ball Bearing 4024X3DC 120 190 66 7.5
Angular Contact Ball Bearing 4024X3DC-1 120 215 80 13.2
Angular Contact Ball Bearing 4026X2D 130 200 75 9.1
Angular Contact Ball Bearing 4028X3D 140 209.5 66 8.4
Angular Contact Ball Bearing 4028X3DC 140 209.5 66 8.4
Angular Contact Ball Bearing 4028D 140 210 69 8.8
Angular Contact Ball Bearing 4028DC 140 210 69 8.8
Angular Contact Ball Bearing 4030X3DC 150 210 56 6.3
Angular Contact Ball Bearing 4030X2D 150 225 73 9.4
Angular Contact Ball Bearing 4030X2D/W33 150 225 73 9.4
Angular Contact Ball Bearing 4030X2DT/W33 150 225 73 9.4
Angular Contact Ball Bearing 4030D 150 225 75 9.6
Angular Contact Ball Bearing 4030X3D 150 230 70 11.5
Angular Contact Ball Bearing 3230X2D/W33 150 270 90 23.3
Angular Contact Ball Bearing 4932X2DC 160 215 56 8.6
Angular Contact Ball Bearing 4932X3DC 160 239.8 76 12
Angular Contact Ball Bearing 3032X2D 160 240 58 9.7
Angular Contact Ball Bearing 4032X2DC 160 240 76 13.5
Angular Contact Ball Bearing 4032D 160 240 80 12
Angular Contact Ball Bearing 4032X3DC 160 249.5 84 15
Angular Contact Ball Bearing 4934X3DC 170 230 56 7
Angular Contact Ball Bearing 4034X3D 170 259.5 84 15
Angular Contact Ball Bearing 4034X2DC 170 260 84 15
Angular Contact Ball Bearing 4034D 170 260 90 15.5
Angular Contact Ball Bearing 4936X3DC 180 250 70 9.2
Angular Contact Ball Bearing 4936X3D-1 180 259.5 60 11
Angular Contact Ball Bearing 4936X3D/W33 180 259.5 66 11
Angular Contact Ball Bearing 4936X2DC 180 259.5 66 11
Angular Contact Ball Bearing 4036X3DC 180 259.5 80 14.5
Angular Contact Ball Bearing 4036X3DC-1 180 280 92 19.7
Angular Contact Ball Bearing 4036X2DT/W33 180 280 92 19.7
Angular Contact Ball Bearing 4036D 180 280 100 24
Angular Contact Ball Bearing 4938X3D 190 269.5 66 12.5
Angular Contact Ball Bearing 4938X3D/W33 190 269.5 66 12.5
Angular Contact Ball Bearing 4038DC 190 290 92 23
Angular Contact Ball Bearing 4038D 190 290 100 26.2
Angular Contact Ball Bearing 4940X3D 200 279.5 76 15
Angular Contact Ball Bearing 4940X3D/W33 200 279.5 76 15
Angular Contact Ball Bearing 4940X3DC 200 280 76 15.2
Angular Contact Ball Bearing 4040X3DC-1 200 280 80 16
Angular Contact Ball Bearing 4940X3D-1 200 289.5 76 15.5
Angular Contact Ball Bearing 4940X3D-1/W33 200 289.5 76 15.2
Angular Contact Ball Bearing 4040X3D 200 309.5 102 33
Angular Contact Ball Bearing 4040X3DC 200 310 96 29.5
Angular Contact Ball Bearing 4040D 200 310 109 33.1
Angular Contact Ball Bearing 4944X30 220 309.5 76 22.1
Angular Contact Ball Bearing 4944X3D/W33 220 309.5 76 22.1
Angular Contact Ball Bearing 2044X3D 220 329.5 76 21.4
Angular Contact Ball Bearing 4040X2DC 220 340 112 34.6
Angular Contact Ball Bearing 4044D 220 340 118 33.5
Angular Contact Ball Bearing 4946X1D 230 329.5 80 23.5
Angular Contact Ball Bearing 4946X1D/W33 230 329.5 80 23.5
Angular Contact Ball Bearing 4946X3D 230 329.5 80 23.5
Angular Contact Ball Bearing 4946X3D/W33 230 329.5 80 23.5
Angular Contact Ball Bearing 4048X1D 240 359.5 118 44
Angular Contact Ball Bearing 4048D 240 360 118 44
Angular Contact Ball Bearing 4048X3D 240 370 112 46
Angular Contact Ball Bearing 4952X2D/W33 240 360 92 29.3
Angular Contact Ball Bearing 4952X3D 260 369.5 92 30.5
Angular Contact Ball Bearing 4952X3D/W33 260 369.5 92 30.5
Angular Contact Ball Bearing 4952X3DC 260 400 130 56
Angular Contact Ball Bearing 4052D 260 400 140 60
Angular Contact Ball Bearing 4956X3D-1 280 389.5 92 35
Angular Contact Ball Bearing 4956X3D-1/W33 280 389.5 92 35
Angular Contact Ball Bearing 4956X3DC/W33 280 389.5 92 35
Angular Contact Ball Bearing 4956X3D 280 390 92 40
Angular Contact Ball Bearing 4956X3D/W33 280 390 92 40
Angular Contact Ball Bearing 4056X3DC 280 420 130 60.1
Angular Contact Ball Bearing 4056D 280 420 140 64.2
Angular Contact Ball Bearing 4960X3D 300 419.5 112 50.5
Angular Contact Ball Bearing 4960X3DC/W33 300 459.5 100 66.5
Angular Contact Ball Bearing 4060X2D/W33 300 459.5 112 68
Angular Contact Ball Bearing 4060X2D/W33 300 460 148 84.4
Angular Contact Ball Bearing 4060X2DC/W33 300 460 148 84.4
Angular Contact Ball Bearing 4060D 300 460 160 77.8
Angular Contact Ball Bearing 4064X3D 320 459.5 140 80
Angular Contact Ball Bearing 4064X3D/W33 320 459.5 140 80
Angular Contact Ball Bearing 4064D 320 480 160 98
Angular Contact Ball Bearing 4968X2D/W33 340 460 112 54
Angular Contact Ball Bearing 4068D 340 520 180 130.5
Angular Contact Ball Bearing 4068D/W33 340 520 180 130.5
Angular Contact Ball Bearing 4972X2D/W33 360 480 112 57
Angular Contact Ball Bearing 4072X2D/W33 360 540 164 125
Angular Contact Ball Bearing 4976X2D/W33 380 520 130 83
Angular Contact Ball Bearing 4076X2D/W33 380 560 164 133
Angular Contact Ball Bearing 4980X2D/W33 400 540 130 84
Angular Contact Ball Bearing 4080X2D/W33 400 600 180 170
Angular Contact Ball Bearing 4984X2D/W33 420 560 130 89
Angular Contact Ball Bearing 4084X2D/W33 420 620 180 177
Angular Contact Ball Bearing 4088X2D/W33 440 650 188 200
Angular Contact Ball Bearing 4992X2D/W33 460 620 148 116
Angular Contact Ball Bearing 4092X2D/W33 460 680 200 240
Angular Contact Ball Bearing 4096X2D/W33 480 700 200 240
Angular Contact Ball Bearing 49/500X2D/W33 500 670 156 156
Angular Contact Ball Bearing 40/500X2D/W33 500 720 200 260
Angular Contact Ball Bearing 49/530X2DC/W33 530 760 200 274.5
Angular Contact Ball Bearing 40/530X2DC/W33 530 780 224 335
Angular Contact Ball Bearing 49/560D/W33 560 750 190 230
Angular Contact Ball Bearing 40/560X2D/W33 560 820 230 390

Request Informations

Wanting more information about MBY? Contact us now! Tell us your need and we will contact with you within 24 hours.

Facebook Twitter Youtube

ABOUT

Old Website: mby-bearing.com

PRODUCTS

INFORMATION

CONTACT

  • [email protected]
  • 0086-510-82609444
  • 19th Floor,No. 198, Minfeng Road, Beitang District, Wuxi, China.

© Copyright 2006-2024 Wuxi MBY Bearing Technology Co.,Ltd
